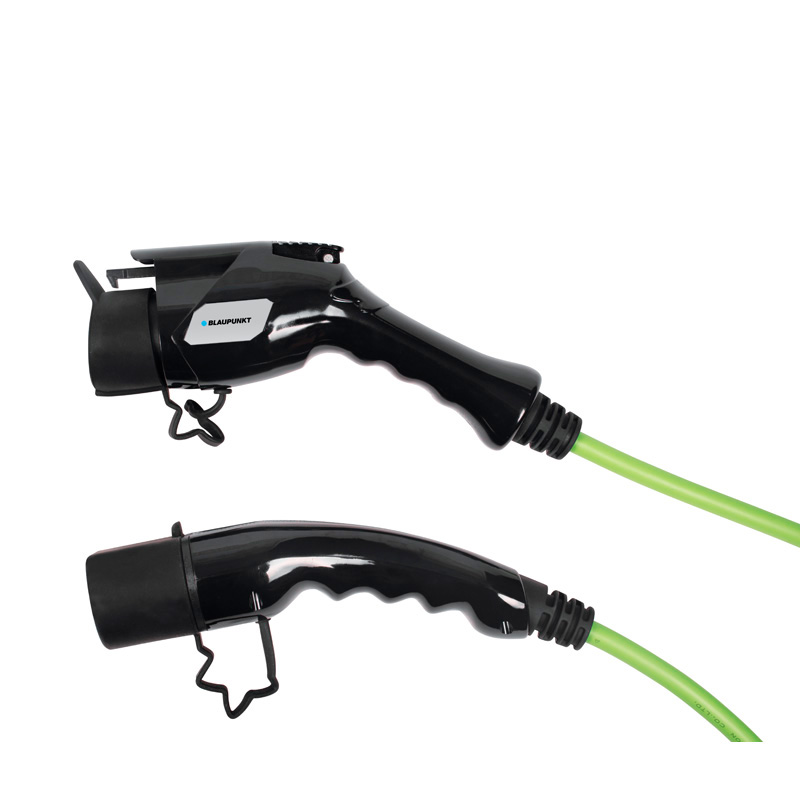

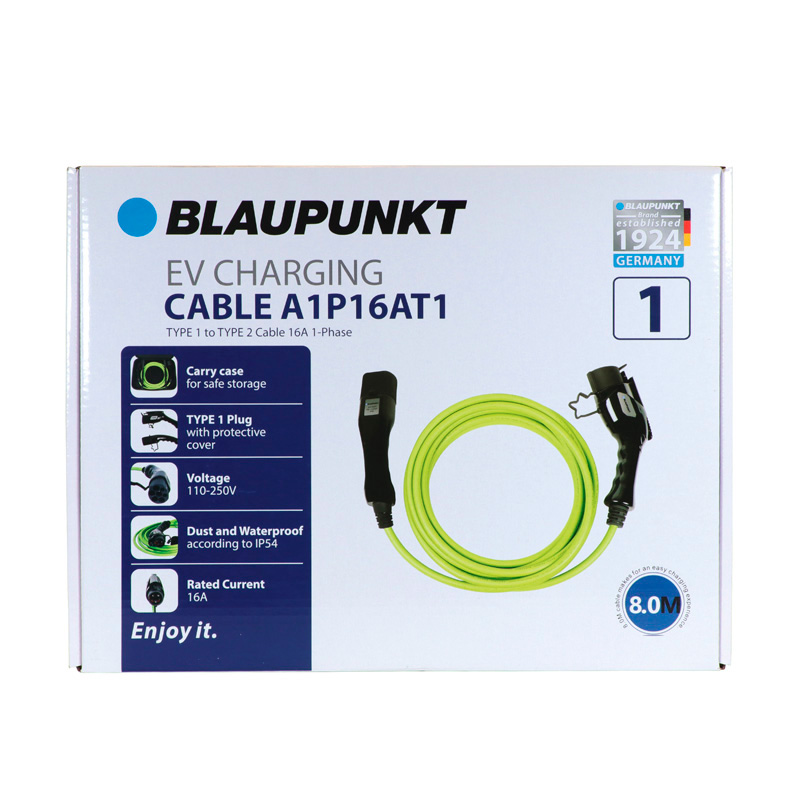

Product information "Blaupunkt Electric Vehicle Charging Cable Type1>2 16A 1ph A1P16AT1 8m"
Blaupunkt EV 1 Phase charging cable for type 1 electric car
With its 16A capacity, it safely charges up to 3.7 KW. With IP54 classification for safe outdoor charging in all weather conditions.
Total length 8 meters, incl. convenient transport and protective carrying bag.
:
Chevrolet Bolt - EL
Citroën Berlingo
Citroën C-Zero
Ford Transit Connect Electric
Mitsubishi I-miev
Mitsubishi Outlander PHEV
Nissan Leaf 2011-2016
Opel Ampera
Peugeot iOn
Peugeot Partner
Renault Kangoo
Toyota Prius Plug-In
See the 'Manual' tab for the exact application list and charge indications.
Working Voltage: 110V - 250V
Rated Current: 16A
Insulation Resistance: >1000M'Ω
Resistance Voltage: 2000V
Contact resistance: <0.5M'Ω
Insertion and Extraction Force: 80N<F<100N
Main Material: Thermo Plastic/Silicon Rubber/Copper Alloy
Cable Spec.: 3x 2.5mm2 + 2x 0.5mm2
Cable Length: 8m
IP-class: 54
Fire rating: UL94 V-0
Operating Temperature: -30°C - 50°C
Net Weight: 1.8 kg
| Colors: | Black, Green |
|---|---|
| Materials: | Plastic |
