Product information "Audi RS3 8P 2011-2013 Wagner Competition Pakket: Intercooler EVO2 + Downpipe zonder kat."

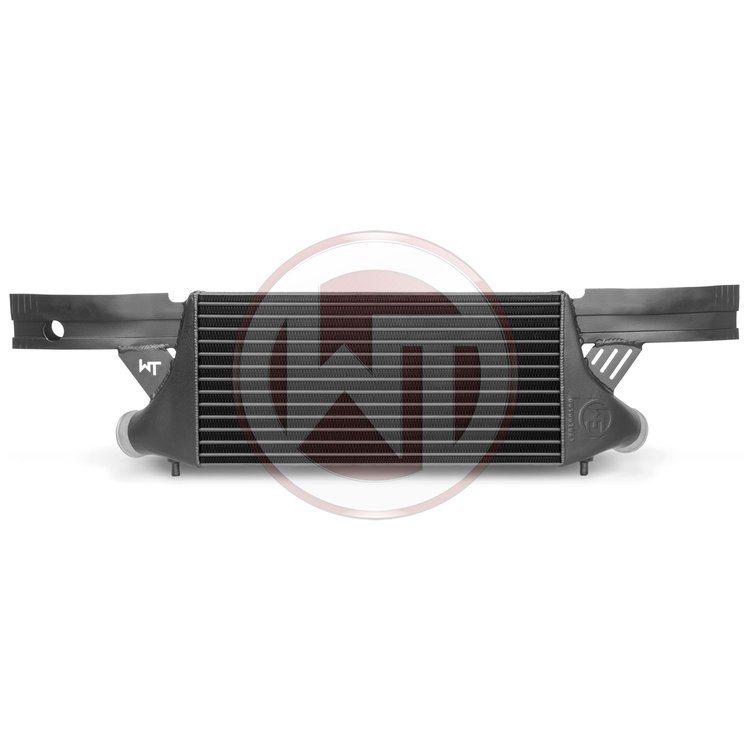

Intercooler Upgrade Kit:
The high performance intercooler has the following net dimensions (535mm x 260mm x 95mm) and thus offers a 62.5% larger flow area and 94% more charge air volume compared to the original intercooler. The new Competition high-performance mesh still provides sufficient airflow to the adjacent components, such as the water cooler, and is also very lightweight. The end boxes of the intercooler are made of cast aluminum and were optimized under flow analyses in the CAD system. This intercooler has hevorragende cooling properties and is just right for racing. The intercooler and the original crossmember form a stable unit and weighs less than 10kg thanks to the new Competition high-performance mesh. The assembly is done at the original mounting points and is easy to perform(1:1 exchange). An optimal cooling of the charged air with a significant increase in performance!
OEM intercooler: cooling surface 856cm² / charge air volume 6,8L
WT EVO 1 Performance: cooling surface 856cm² / charge air volume 9,4L
WT EVO 2 Competition: cooling surface 1391cm² / charge air volume 13,2L
WT EVO 3 Competition: cooling surface 1890cm² / charge air volume 16,5L
All our products are subject to constant qualitative monitoring.
Scope of delivery:
1 intercooler together with the cross bar
1 license plate holder 20° inclined
1 assembly instruction
Remark:
only for racing

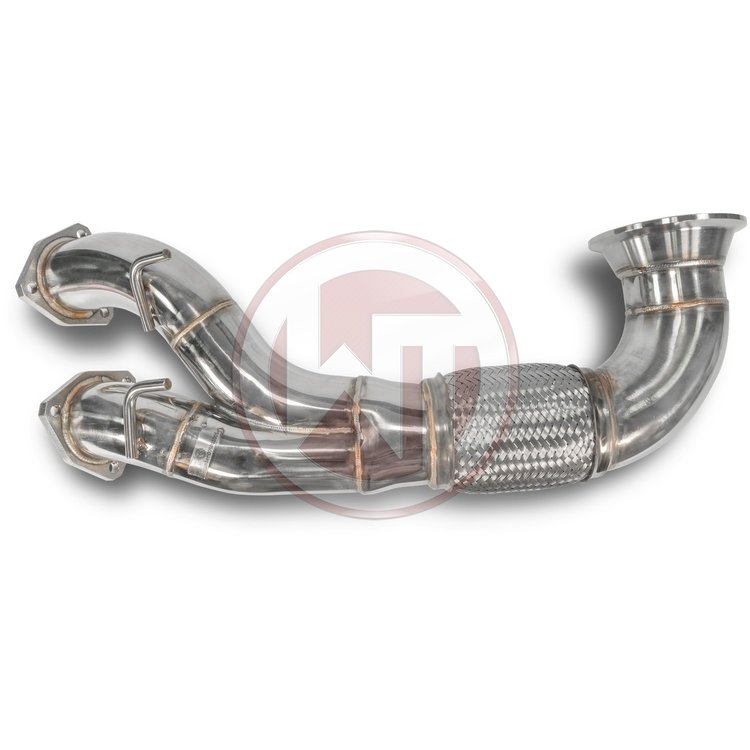

The Y-pipe for Audi TTRS 8J/RS3 8P
diameter from 90mm to 2 times 70mm
complete high quality stainless steel 1.4301 (SS304)
without pre-cat
1 lambda probe connection
100% accurate fit, easy to replace with stock part
less thermal load for the turbocharger
more power due to back pressure reduction
much more torque
suitable for Audi TTRS 8J as well as Audi RS3 8P
compatible with the original main catalysts
Login
Manufacturer Info
WAGNER Intercoolers zijn leverbaar als Performance en Competition. Het verschil zit in het type gebruikte gaas. Bij de Performance is dat "Bar & Plate" en bij de Competition "Tube Fin".
Daarnaast zijn er nog 3 verschillende volumes: EVO1, EVO2 en EVO3.
EVO1 is ontwikkeld om gebruikt te worden in combinatie met de originele turbolader met als resultaat een zeer efficiënte koeling van de inlaatlucht. EVO2 en EVO3 hebben een grotere volume en gaan prima samen met de toename van inlaatlucht na een turbolader upgrade. Afhankelijk van het systeem worden ook de in- en uitlaat diameters vergroot.
Deze intercoolers worden met de benodigde siliconen slangen geleverd.
