Description
100% Plug and Play

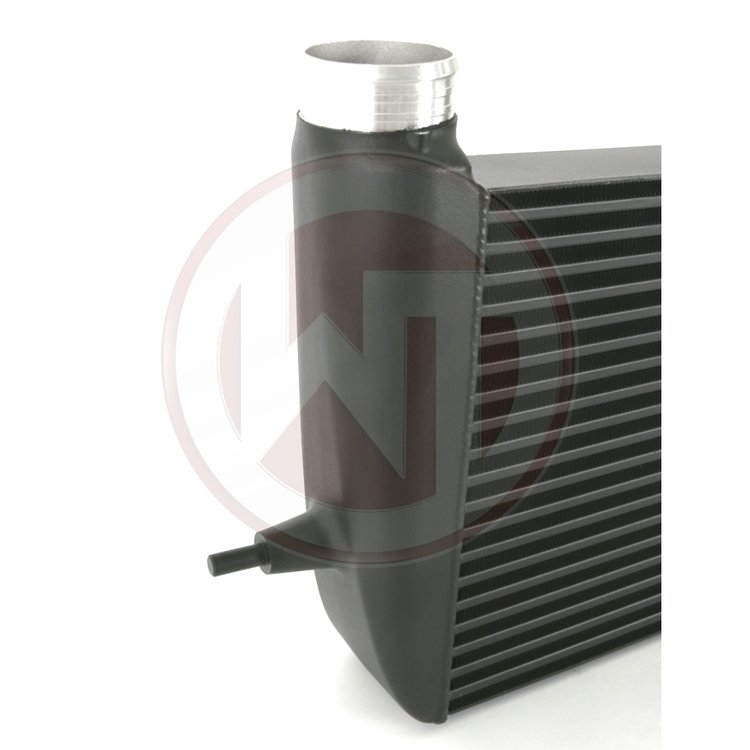

The high performance intercooler has the following net dimensions (530mm x 318mm x 100mm) and thus offers a 19% larger flow area as well as 70% more charge air volume compared to the original intercooler. The newly developed Competition high-performance mesh is very light, so the complete intercooler weighs only 10.3kg. The end boxes of the intercooler are made of cast aluminum and were optimized under flow analyses in the CAD system. With the help of incorporated air baffles, in the inlet, a uniform filling of the intercooler is ensured. The connection diameters at the inlet and outlet expanded to 70mm. Therefore, the kit includes 2 reinforced silicone hoses. The result is excellent cooling properties at lowest back pressure. Thus, this kit is just right for racing. The assembly takes place at the original mounting points and is easy to perform (100% plug & play). An optimal cooling of the charged air with a significant increase in performance! All our products are subject to constant qualitative monitoring.
OEM intercooler: cooling surface 1421cm² / charge air volume 9,9L
WAGNERTUNING intercooler: cooling surface 1685cm² / charge air volume 16,9L
Scope of delivery:
1 intercooler
2 silicone hoses (60mm)
1 mounting material
1 assembly instruction
