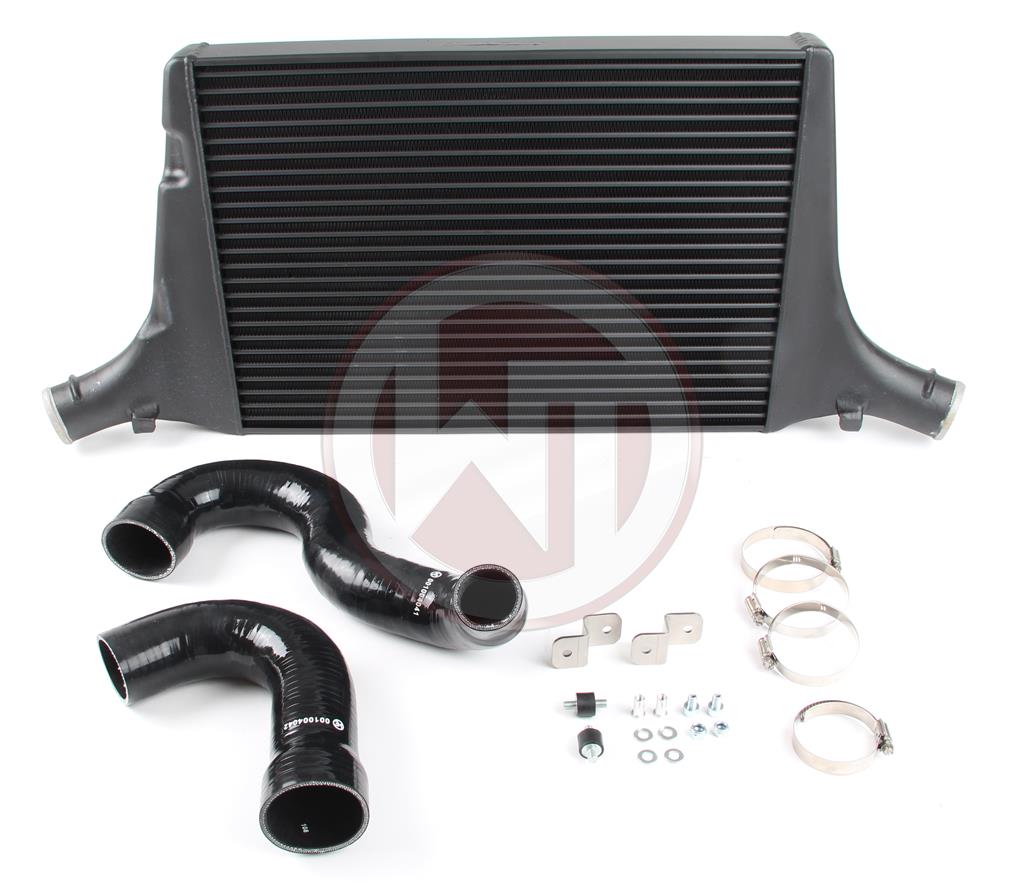

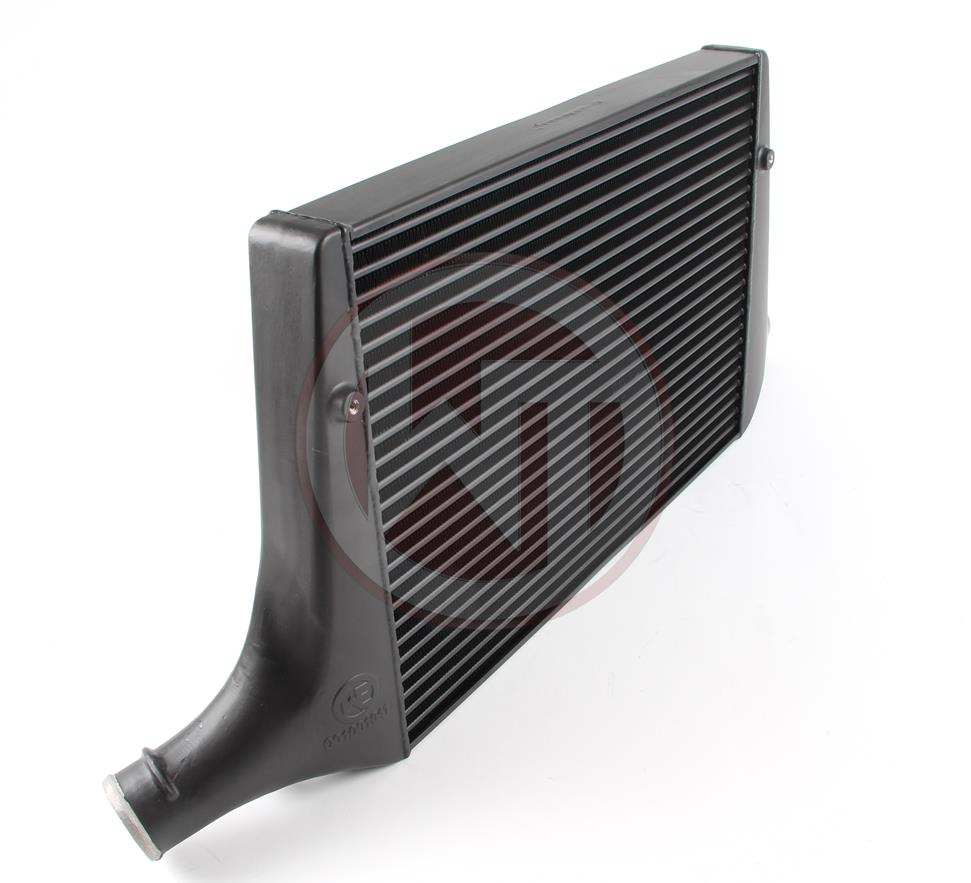

Intercooler Audi A4 B8 2007- 1.8TFSI, 2.0TFSI: incl. Allroad Wagner Competition kit
The high performance intercooler has the following net dimensions (610mm x 440mm x 65mm = 17.446L), providing 178% more flow area, as well as 158% more intercooler volume compared to the original intercooler. The Competition high performance mesh is a high quality Tube Fin mesh with internal turbulators. As a result, the weight of the intercooler, despite its size, is only 9.1kg. The cast aluminum end boxes were created in CAD and optimized for best possible internal airflow using CFD simulations. An air guide integrated in the end box allows a homogeneous filling of the Competition high performance mesh. The port diameters were increased to Ø67mm, so this kit comes with reinforced silicone hoses. Overall, this intercooler has far less back pressure than the stock intercooler. In addition, all our intercoolers have an anti-corrosion coating with excellent heat conduction properties. This guarantees permanent and optimal cooling with a significant increase in performance. The complete ready-to-install kit, simply replace with the stock intercooler. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. Suitable for racing. The Competition Intercooler Upgrade Kit is suitable for the following vehicles: Audi A4 B8 1,8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CABD, CDHB)*.Audi A4 B8 2,0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*Audi A4 B8 Allroad 2,0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*Audi A5 B8 1,8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CABD, CDHB)*Audi A5 B8 2.0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*Audi A5 B8 Sportback 1,8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CDHB)*Audi A5 B8 Sportback 2,0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)* * Not suitable in B8.5 Facelift models* For vehicles with dynamic steering, the additional cooling loop must be relocated to a different position. Instructions for this can be found in our installation instructions. Scope of delivery:1 intercooler2 charge air hoses4 hose clamps1 mounting material1 assembly instruction
Intercooler Audi A4 B8 2007- 2.0TD: incl. Allroad Wagner Competition kit
The Competition Intercooler Upgrade Kit is suitable for: Audi A4 B8 2,0 TDI 2008-2013 (100-130KW/136-170PS)*Audi A4 B8 Allroad 2,0 TDI 2008-2010 (100-130KW/136-170PS)*Audi A5 2,0 TDI 2008-2012 (100-130KW/136-170PS)*Audi A5 Sportback 2,0 TDI 2008-2012 (100-130KW/136-170PS)* * Not suitable in B8.5 Facelift models* For vehicles with dynamic steering, the additional cooling loop must be relocated to a different position. Please refer to our installation instructions for instructions. The high performance intercooler has the following net dimensions (610mm x 440mm x 65mm = 17,446L) and thus offers a 178% larger flow area, as well as 158% more charge air volume compared to the original intercooler. The Competition high performance mesh is a high quality Tube Fin mesh with internal turbulators. As a result, the weight of the intercooler, despite its size, is only 9.1kg. The cast aluminum end boxes were created in CAD and optimized for the best possible internal airflow using CFD simulations. An air guide integrated in the end box allows a homogeneous filling of the Competition high performance mesh. The port diameters were increased to Ø67mm, so this kit comes with reinforced silicone hoses. Overall, this intercooler has far less back pressure than the stock intercooler. In addition, all our intercoolers have an anti-corrosion coating with excellent heat conduction properties. This guarantees permanent and optimal cooling with a significant increase in performance. The complete ready-to-install kit, simply replace with the stock intercooler. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. Suitable for racing. Scope of delivery:1 intercooler2 charge air hoses4 hose clamps1 mounting material1 assembly instruction
Intercooler Audi A4 B8 2007- 2.7 TDi, 3.0TDI: incl. Allroad Wagner Competition kit
The Competition Intercooler Upgrade Kit is suitable for: A4 B8 2,7 TDI (140KW/190hp)*A4 B8 3,0 TDI (176KW/240hp)*A4 B8 3,0 TDI (180KW/245hp)*A4 B8 Allroad 2,7 TDI (140KW/190hp)*A4 B8 Allroad 3.0 TDI (176KW/240hp)*A4 B8 Allroad 3.0 TDI (180KW/245hp)*A5 2.7 TDI (140KW/190hp)*A5 3.0 TDI (176KW/240hp)*A5 3.0 TDI (180KW/245hp)*A5 Sportback 2.7 TDI (140KW/190hp)*A5 Sportback 3.0 TDI (176KW/240hp)*A5 Sportback 3.0 TDI (180KW/245hp)* * For B8.5 Facelift models Part number: 200001123* For vehicles with dynamic steering, the additional cooling loop must be relocated to a different position. Please refer to our installation instructions for instructions. The high performance intercooler has the following net dimensions (610mm x 440mm x 65mm = 17,446L) and thus offers a 178% larger flow area, as well as 158% more charge air volume compared to the original intercooler. The Competition high performance mesh is a high quality Tube Fin mesh with internal turbulators. As a result, the weight of the intercooler, despite its size, is only 9.1kg. The cast aluminum end boxes were created in CAD and optimized for the best possible internal airflow using CFD simulations. An air guide integrated in the end box allows a homogeneous filling of the Competition high performance mesh. The port diameters were increased to Ø67mm, so this kit comes with reinforced silicone hoses. Overall, this intercooler has far less back pressure than the stock intercooler. In addition, all our intercoolers have an anti-corrosion coating with excellent heat conduction properties. This guarantees long-lasting and optimal cooling with a significant increase in performance. The complete ready-to-install kit, simply replace with the stock intercooler. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. Suitable for racing. Scope of delivery:1 intercooler2 charge air hoses4 hose clamps1 mounting material1 assembly instruction
