![Intercooler Audi RSQ3 [8U] 2.5 2011- Wagner Competition kit Evo 2](https://carfantasy.nl/media/38/82/cf/1719080064/200001082_1.jpg?ts=1727536613 "200001082_1")
![Intercooler Audi RSQ3 [8U] 2.5 2011- Wagner Competition kit Evo 2](https://carfantasy.nl/media/45/0e/7d/1719220381/200001082_4.jpg?ts=1727536613 "200001082_4")

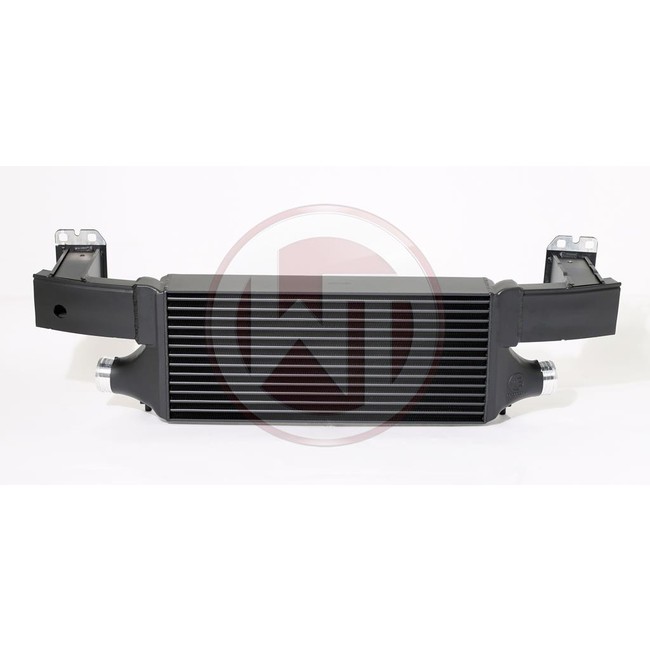

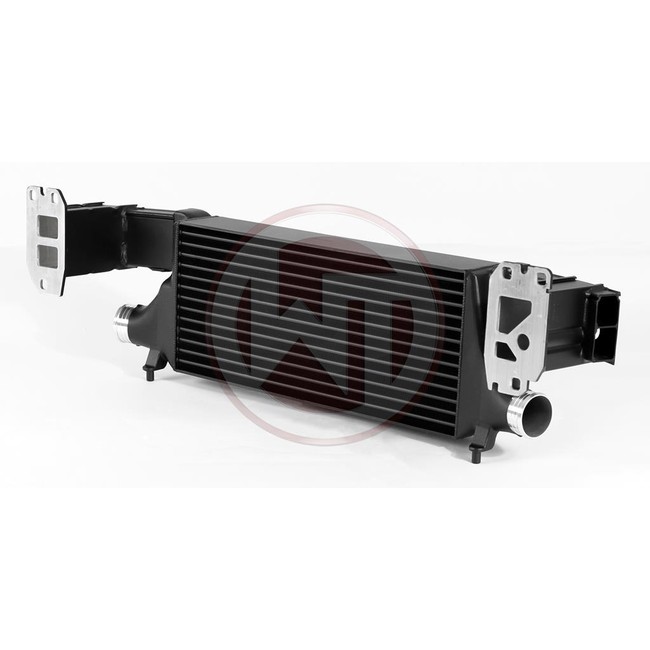

Intercooler Audi RSQ3 [8U] 2.5 2011- Wagner Competition kit Evo 2
RS3 2.5 RS TFSI 228/250/270kw/310/340/367HP (2013-) Volume: 15.6LWeight: 11.2kg The high performance intercooler has the following mesh dimensions (600mm x 260mm x 100mm), providing 87% larger flow area and 70% more charge air volume compared to the original intercooler. The newly developed Competition high-performance mesh grants sufficient airflow to the adjacent components, such as the water cooler, and is also very lightweight. The end boxes of the charge air cooler are made of cast aluminum and were optimized under flow analyses in the CAD system. With the help of incorporated air baffles, in the entrance, a uniform filling of the intercooler is ensured. The result is excellent cooling properties with low back pressure. Thus, this kit is exactly the right thing for racing. The intercooler and the original crossmember form a stable unit and weighs only 11.2kg thanks to the new Competition high-performance mesh. The assembly is done at the original mounting points and is easy to perform(1:1 exchange). An optimal cooling of the charged air with a significant increase in power! 66mm inlet and outlet. OEM intercooler: cooling surface 832cm² / charge air volume 9,15LWT EVO 2 Competition: cooling surface 1560cm² / charge air volume 15,6L All our products are subject to constant qualitative monitoring. Scope of delivery:1 intercooler together with the cross bar1 mounting material1 installation instruction Remark: only for racing
![Intercooler Audi RSQ3 [F3] 2.5 2019- Wagner Competition kit Evo 1](https://carfantasy.nl/media/ba/fb/74/1719119732/200001107-1.jpg?ts=1727536613 "200001107-1")
![Intercooler Audi RSQ3 [F3] 2.5 2019- Wagner Competition kit Evo 1](https://carfantasy.nl/media/40/20/bd/1718916821/200001107_4-1.jpg?ts=1727536613 "200001107_4-1")

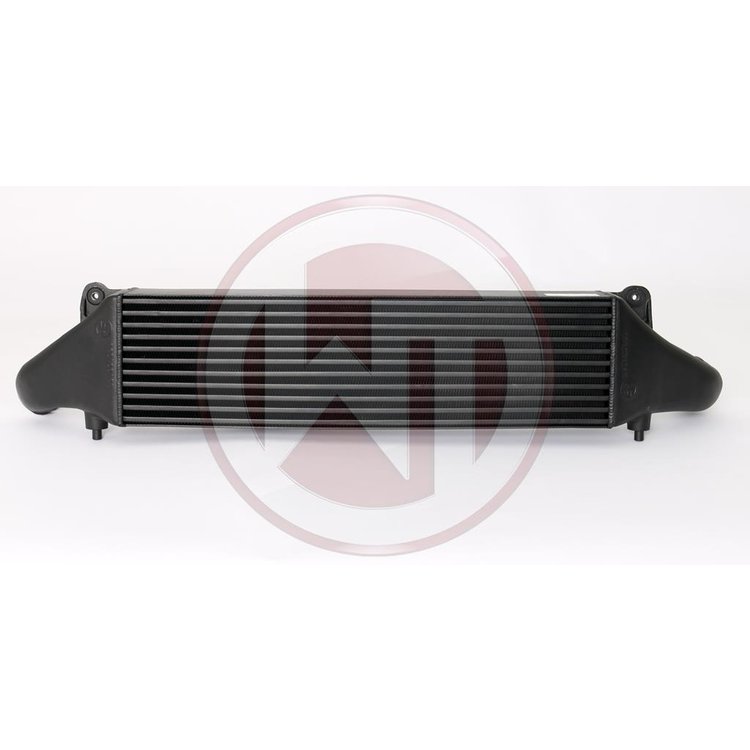

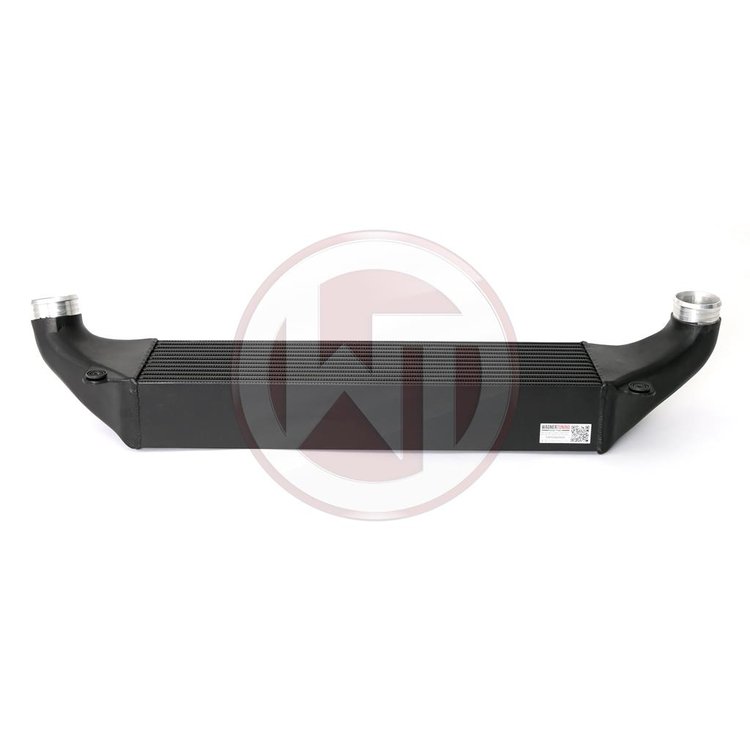

Intercooler Audi RSQ3 [F3] 2.5 2019- Wagner Competition kit Evo 1
Audi RSQ3 F3 294KW/400HP 10/2019+ Competition's high-performance intercooler has the following net dimensions (660x180x110 = 13,070cm³) and thus offers a 14% larger intake area and 57% more charge air volume compared to the original intercooler. Competition's high-quality mesh is a high-performance tubular fin with internal turbulators. Despite its size, the total weight of the intercooler is only 8.3 kg. The end tanks of the intercooler are cast aluminum and were optimized using flow analysis in the CFD system. The result is excellent cooling properties with minimal back pressure. In addition, all our charge air coolers have a corrosion-resistant coating with heat-conducting properties. This guarantees permanent and optimal cooling with a significant performance increase. Fully installation-ready kit, simply replace with series intercooler - plug and play. Tested and pressure stable up to 6 bar. All our products are under constant quality control. Suitable for racing. Dimensions original intercooler:640mm x 163mm x 80mmV=8.3 literA=1043 cm² Dimensions WAGNERTUNING intercooler:660mm x 180mm x 110mmV=13.07 literA=1188 cm² Scope of delivery:1 intercooler (black coated)1 mounting instruction
![Intercooler Audi RSQ3 [F3] 294KW/400PS 10/2019- Wagner Competition kit Evo 3](https://carfantasy.nl/media/4e/5d/ff/1719523763/200001167.jpg?ts=1727536613 "200001167")
![Intercooler Audi RSQ3 [F3] 294KW/400PS 10/2019- Wagner Competition kit Evo 3](https://carfantasy.nl/media/df/36/04/1720435142/200001167_4.jpg?ts=1727536613 "200001167_4")

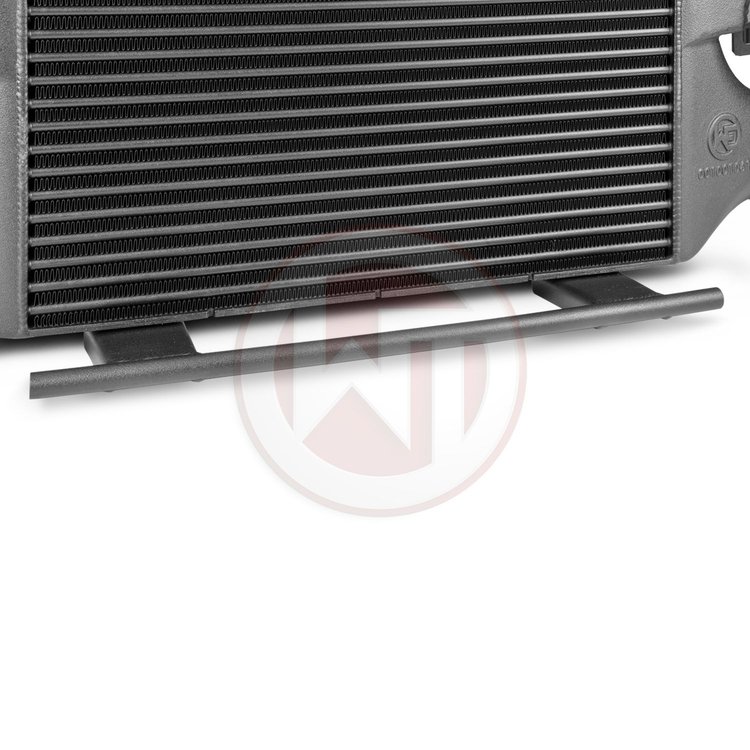

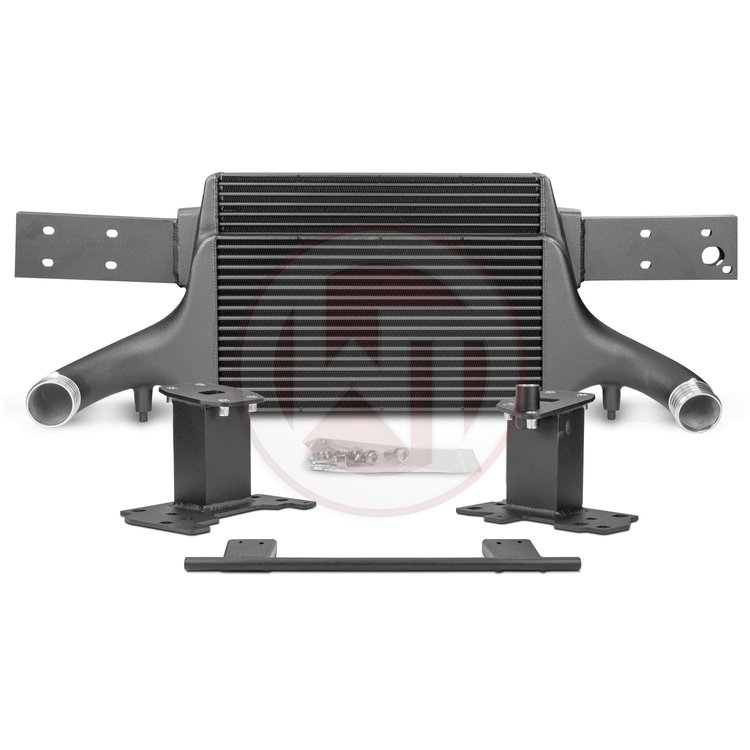

Intercooler Audi RSQ3 [F3] 294KW/400PS 10/2019- Wagner Competition kit Evo 3
Audi RSQ3 F3 294KW/400HP 10/2019+ The high performance intercooler has the following mesh dimensions (515mm x 367mm x 95mm [stepped] = 16,500cm³), providing 84% more flow area, as well as 101% more charge air volume compared to the original intercooler. The newly developed Competition high-performance network grants sufficient airflow to the adjacent components, such as the water cooler. It is a high quality Tube Fin net with internal turbulators. The end boxes of the charge air cooler are made of cast aluminum and were optimized under flow analyses in the CFD system. With the help of incorporated air baffles, in the inlet, a uniform filling of the intercooler is ensured. The result is excellent cooling properties with minimal back pressure. Thus, this kit is suitable for racing. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees permanent and optimal cooling with a significant increase in performance. The intercooler and the original crossmember form a stable unit and weighs, thanks to the new Competition high-performance mesh, only 11.7kg. The installation is done at the original mounting points and is easy to perform (see installation instructions for slight adjustments). Tested and pressure stable up to 6 bar. All our products are subject to constant qualitative monitoring. OEM intercooler:Cooling surface 1024cm² / charge air volume 8,2LInlet and outlet Ø68mm WT EVO 3 Competition:Cooling surface 1890cm² / charge air volume 16,5LInlet and outlet Ø68mm Scope of delivery:1 intercooler together with the cross bar1 mounting material
