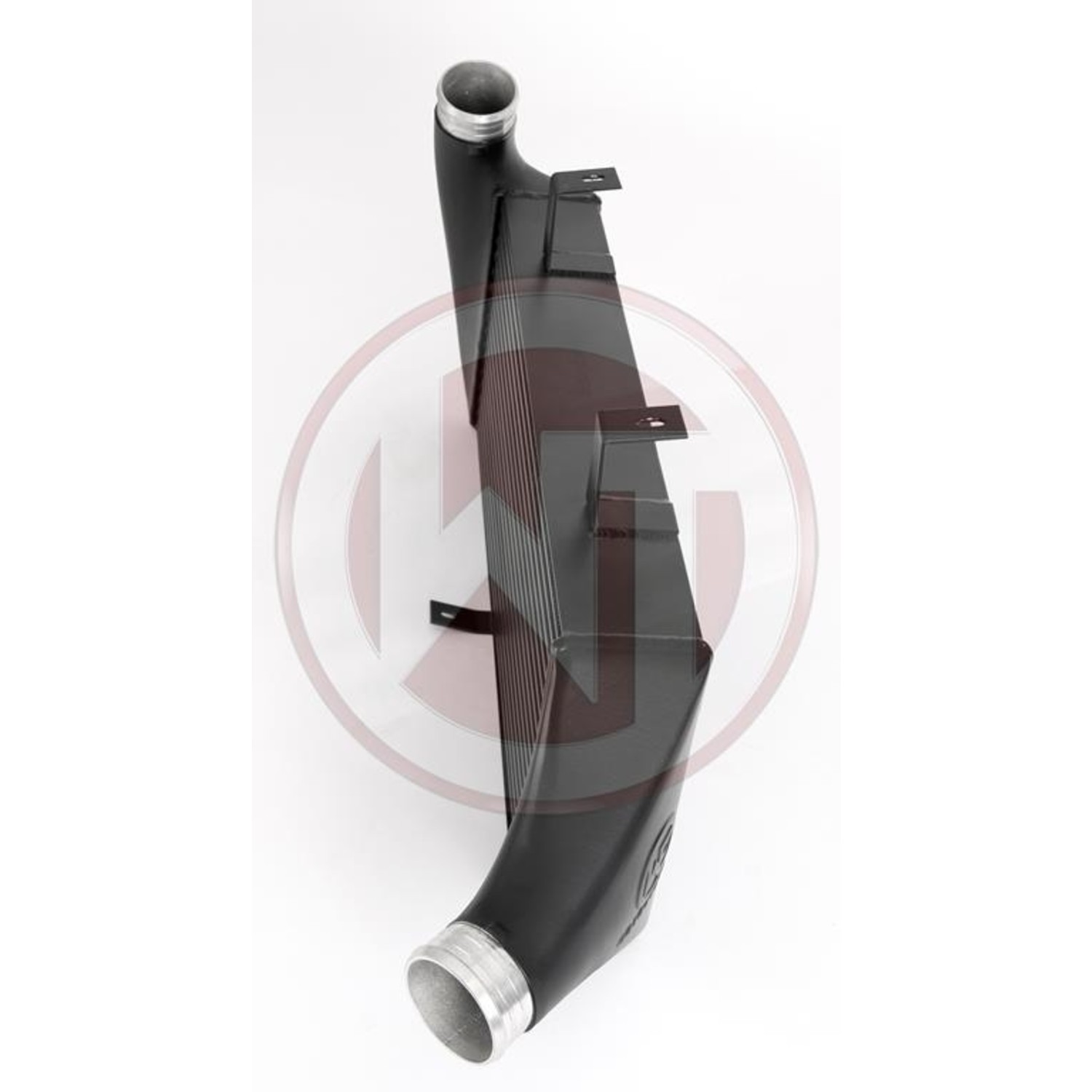

Product information "Intercooler Opel Astra H OPC (2005-2010) Wagner Competition kit"
Opel Astra H OPC 2.0 Turbo 177KW/240HP (2005-2010)
The Competition high performance intercooler has the following net dimensions (550mm x 240mm x 90mm= 11.830cm³) and offers 132% more charge air volume compared to the original intercooler. The newly developed Competition high-performance mesh (Tube Fin) still grants sufficient airflow to the adjacent components, such as the water cooler, and is also very light. As a result, the intercooler has a total weight of only 7.5kg. The cast aluminum end boxes were created in CAD and optimized for the best possible internal airflow using CFD simulations. The intercooler's inlets and outlets have been enlarged to Ø 65mm, so this kit comes with reinforced silicone hoses. Overall, this intercooler has far less back pressure than the stock intercooler. In addition, all of our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees permanent and optimal cooling with a significant increase in performance. The assembly is done by replacing the OEM intercooler and is easy to perform. All our products are subject to constant qualitative monitoring.
Dimensions original intercooler:
525mm x 346mm x 28mm
V=5,1 liter
A=1816 cm²
Dimensions WAGNERTUNING intercooler:
550mm x 240mm x 90mm
V=11,8 Liter
A=1320 cm²
Scope of delivery:
1 Intercooler (black coated)
2 silicone hose (black)
1 mounting material
1 assembly instruction
1 TÜV parts certificate
Login
Manufacturer Info
WAGNER Intercoolers zijn leverbaar als Performance en Competition. Het verschil zit in het type gebruikte gaas. Bij de Performance is dat "Bar & Plate" en bij de Competition "Tube Fin".
Daarnaast zijn er nog 3 verschillende volumes: EVO1, EVO2 en EVO3.
EVO1 is ontwikkeld om gebruikt te worden in combinatie met de originele turbolader met als resultaat een zeer efficiënte koeling van de inlaatlucht. EVO2 en EVO3 hebben een grotere volume en gaan prima samen met de toename van inlaatlucht na een turbolader upgrade. Afhankelijk van het systeem worden ook de in- en uitlaat diameters vergroot.
Deze intercoolers worden met de benodigde siliconen slangen geleverd.
