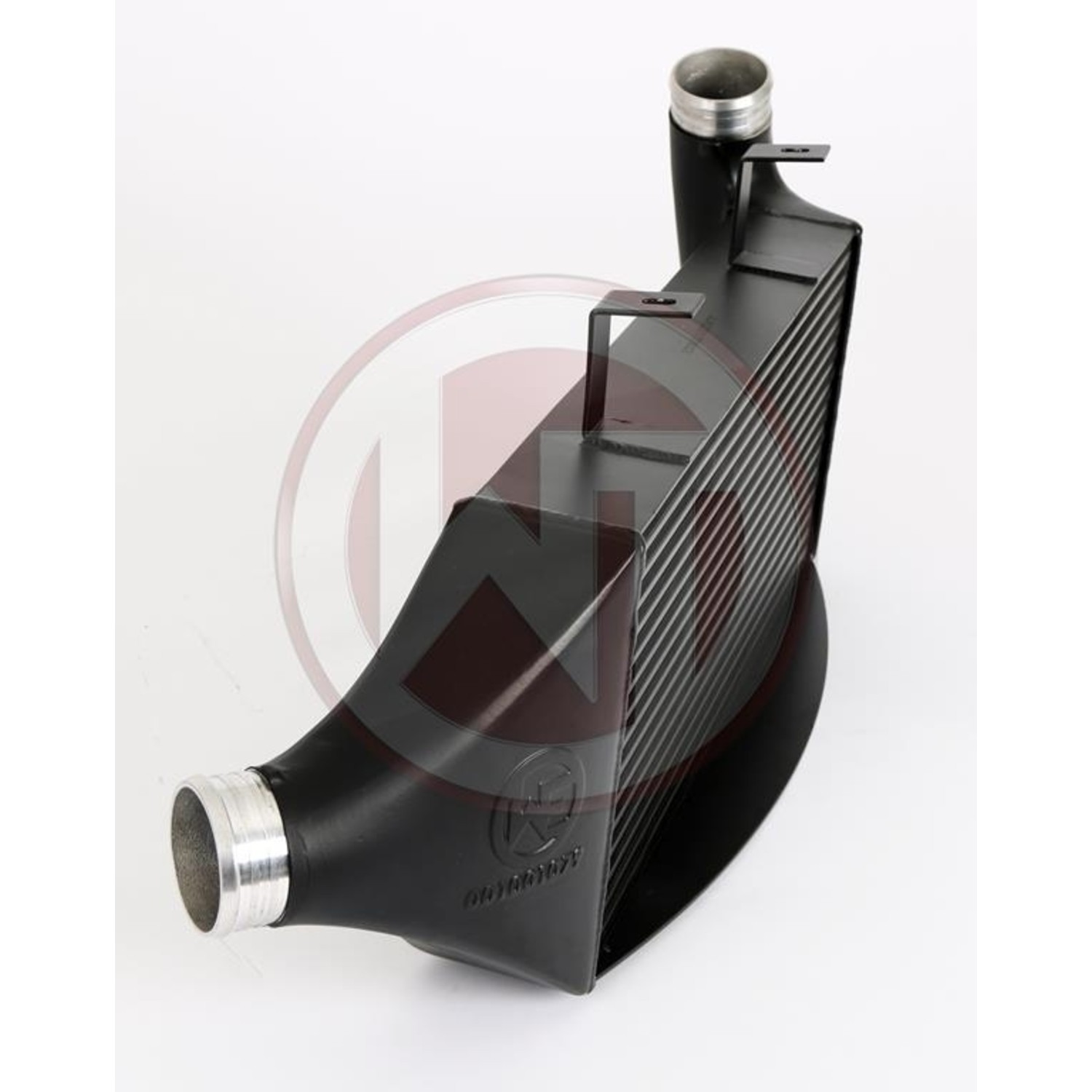

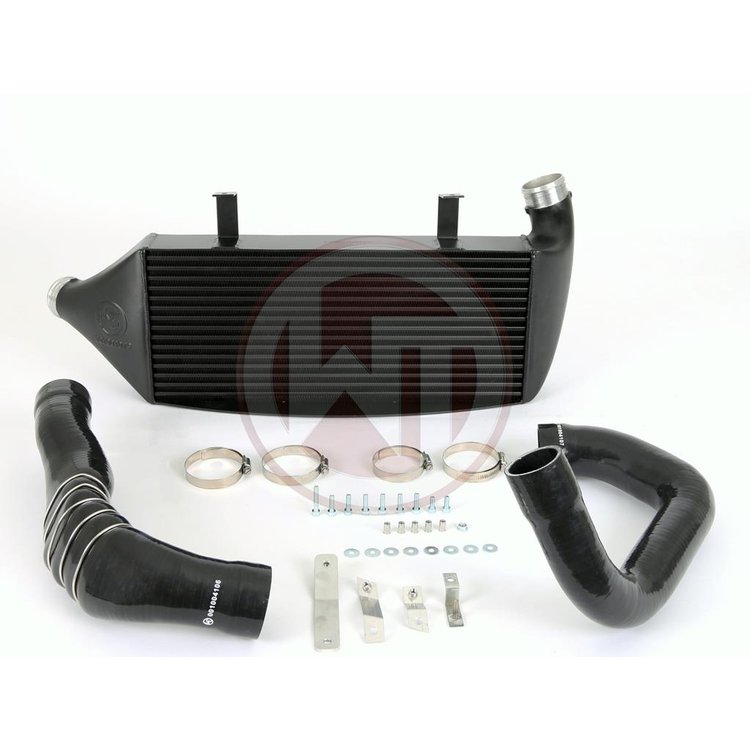

Intercooler Opel Astra H OPC (2005-2010) Wagner Competition kit
Opel Astra H OPC 2.0 Turbo 177KW/240HP (2005-2010) The Competition high performance intercooler has the following net dimensions (550mm x 240mm x 90mm= 11.830cm³) and offers 132% more charge air volume compared to the original intercooler. The newly developed Competition high-performance mesh (Tube Fin) still grants sufficient airflow to the adjacent components, such as the water cooler, and is also very light. As a result, the intercooler has a total weight of only 7.5kg. The cast aluminum end boxes were created in CAD and optimized for the best possible internal airflow using CFD simulations. The intercooler's inlets and outlets have been enlarged to Ø 65mm, so this kit comes with reinforced silicone hoses. Overall, this intercooler has far less back pressure than the stock intercooler. In addition, all of our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees permanent and optimal cooling with a significant increase in performance. The assembly is done by replacing the OEM intercooler and is easy to perform. All our products are subject to constant qualitative monitoring. Dimensions original intercooler:525mm x 346mm x 28mmV=5,1 literA=1816 cm² Dimensions WAGNERTUNING intercooler:550mm x 240mm x 90mmV=11,8 LiterA=1320 cm² Scope of delivery:1 Intercooler (black coated)2 silicone hose (black)1 mounting material1 assembly instruction1 TÜV parts certificate

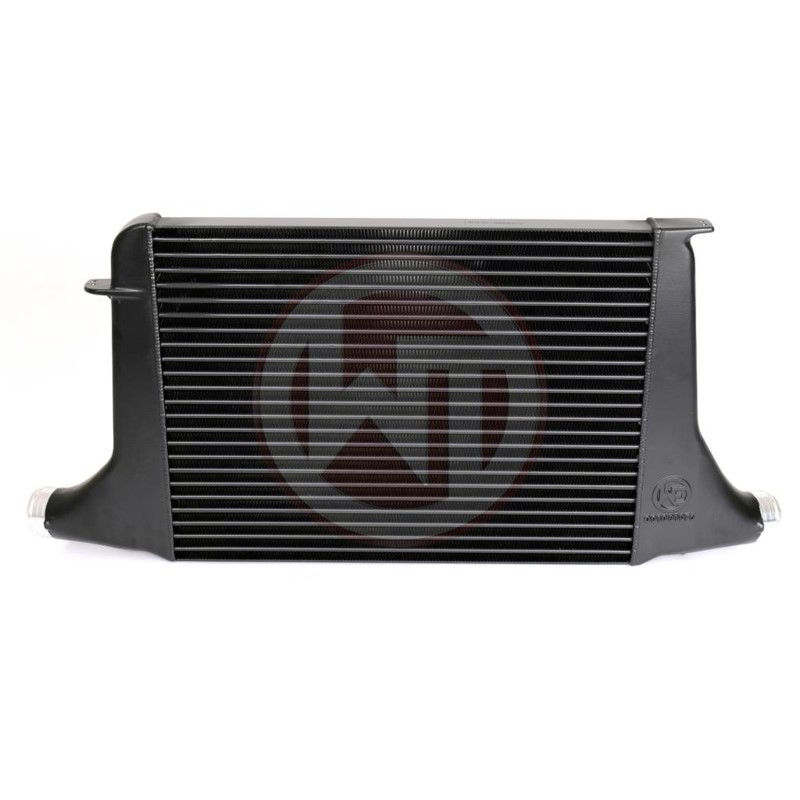

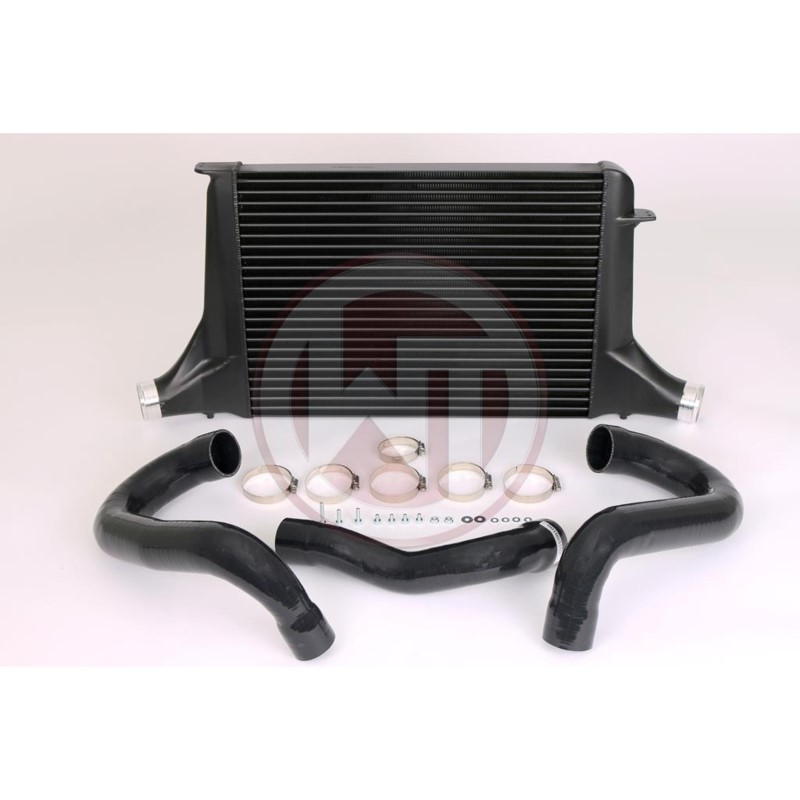

Intercooler Opel Corsa D GSI/OPC 2007-2014 Wagner Competition kit
Opel Corsa D GSI 1.6 Turbo 110KW/150HP (2007-2012)Opel Corsa D OPC 1,6 Turbo 141-155KW/192-211HP (2007-2014) The Competition high-performance intercooler has the following net dimensions (580mm x 437mm x 56mm= 14,193cm³), providing a 226% larger flow area and 246% more charge air volume compared to the original intercooler. The newly developed Competition high-performance mesh (Tube Fin) still provides sufficient airflow to the adjacent components, such as the water cooler, and is also very light. As a result, the intercooler has a total weight of only 7.6kg. The cast aluminum end boxes were created in CAD and optimized for the best possible internal airflow using CFD simulations. An air guide integrated in the end box allows a homogeneous filling of the Competition high performance mesh. The intercooler's inlets and outlets were enlarged to Ø 65mm, so this kit comes with reinforced silicone hoses. Overall, this intercooler has far less back pressure than the stock intercooler. In addition, all of our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees permanent and optimal cooling with a significant increase in performance. The assembly is done by replacing the OEM intercooler and is easy to perform (plug and play). All our products are subject to constant qualitative monitoring. Dimensions original intercooler:575mm x 135mm x 53mmV=4,1 literA=776,25 cm² Dimensions WAGNERTUNING intercooler:580mm x 437mm x 56mmV=14,2 LiterA=2534 cm² Scope of delivery:1 intercooler (black coated)3 silicone hose (black)1 mounting material1 assembly instruction

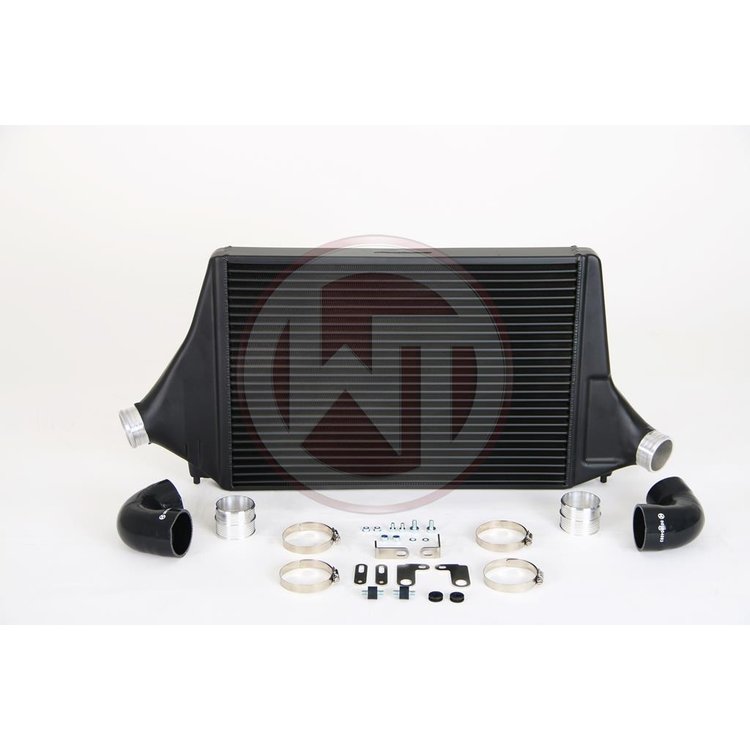

Intercooler Opel Insignia 2.8 V6 Turbo 4x4 en OPC Wagner Competition kit
Opel Insignia A 2.8 V6 Turbo 4x4 2008-2017Opel Insignia A 2.8 V6 Turbo OPC 2009-2017 The Competition high-performance intercooler has the following mesh dimensions (610mm x 440mm x 65mm= 17,446cm³), offering a 10% larger flow area and 138% more charge air volume compared to the original intercooler. The Competition high performance mesh offers very good cooling characteristics. The weight of the intercooler is 9.75kg. CAD designed freeform cast aluminum end boxes for best possible internal airflow. Overall, this intercooler has much less back pressure than the stock intercooler. In addition, all of our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees optimum cooling with a significant increase in performance. Complete ready to install kit, easy installation. Tested and pressure stable up to 6 bar. All our products are subject to constant qualitative monitoring. Suitable for racing. 70mm inlet and outlet. Dimensions original intercooler:665mm x 368mm x 30mmV=7,3 litersA=2447,2 cm² Dimensions WAGNERTUNING intercooler:610mm x 440mm x 65mmV=17,4 LiterA=2684 cm² Scope of delivery:1 intercooler2 silicone hose1 mounting material1 assembly instruction
