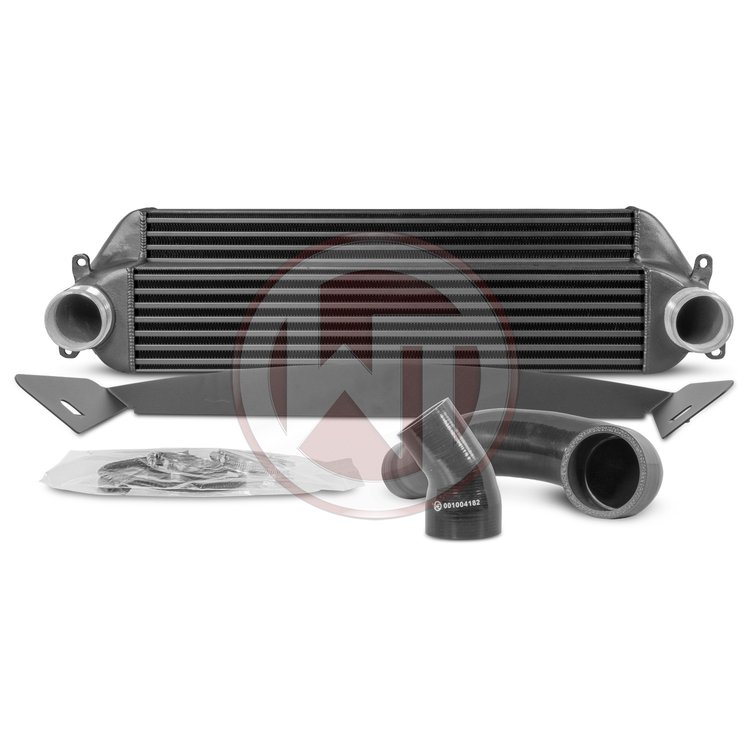

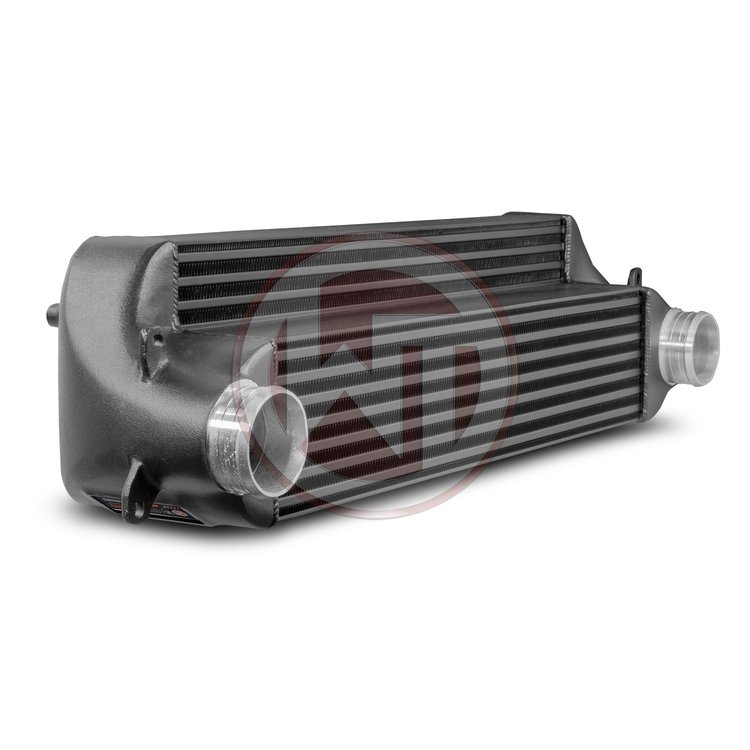

Intercooler Kia (Pro)Cee'd GT (CD) Wagner Competition kit
Kia Ceed (CD) GT 1.6TGDI 150KW/204HP 2018+KIa ProCeed (CD) GT 1,6TGDI 150KW/204HP 2018+ The WAGNERTUNING high performance intercooler has a new type of Competition - net (Tube Fin) with the following dimensions580 mm x 120 mm x 150 mm + 580 mm x 62 mm x 70 mm (stepped net: 12.96 liters), which was developed specifically for the demands of the Kia (Pro)Ceed GT. This high performance mesh thus offers a 60% larger flow area, as well as 118% more mesh volume compared to the original intercooler. The cast aluminum end boxes were designed in CAD and optimized using CFD simulations (for ideal internal airflow). The result is excellent cooling properties at lowest backpressure. In addition, the newly developed Competition high-performance mesh still provides sufficient airflow to the adjacent components, such as the water cooler, through the use of a specially manufactured air baffle. Thus, this kit is just right for racing. An optimal cooling of the charged air with a significant increase in performance! An anti-corrosion coating with excellent heat conduction properties protects the WAGNERTUNING intercooler from any environmental influences, as a result of which a lasting and optimal cooling effect can be guaranteed. The installation is done at the original mounting points and is easy to perform (plug and play). All our products are subject to constant qualitative monitoring. Inlet and outlet diameter: Ø65mm OEM intercooler:V = 5,94 LA = 660 cm² WAGNERTUNING intercooler:V = 12,96 L (+118%)A = 1055 cm² (+60%) Scope of delivery:1 intercooler2 silicone hoses1 air baffle1 mounting material1 installation instruction

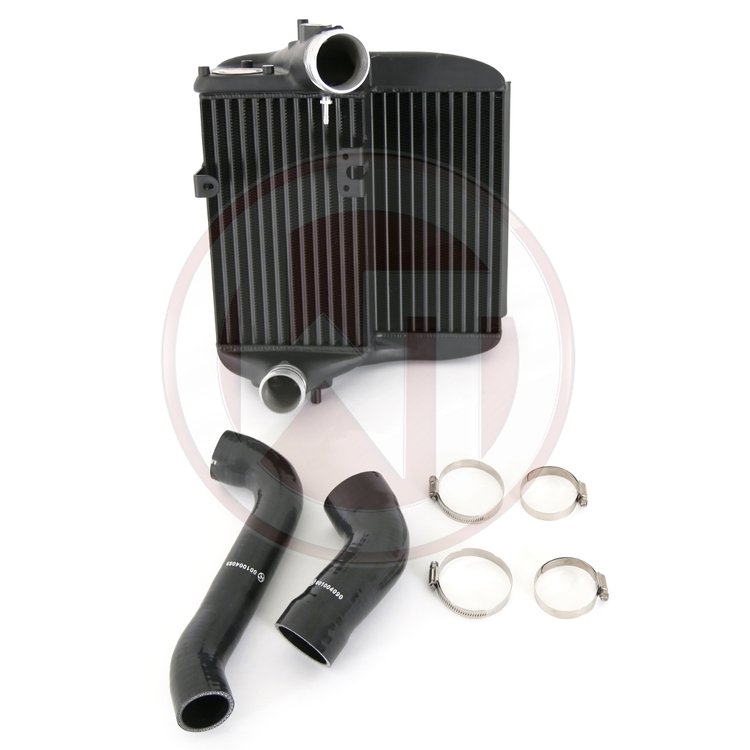

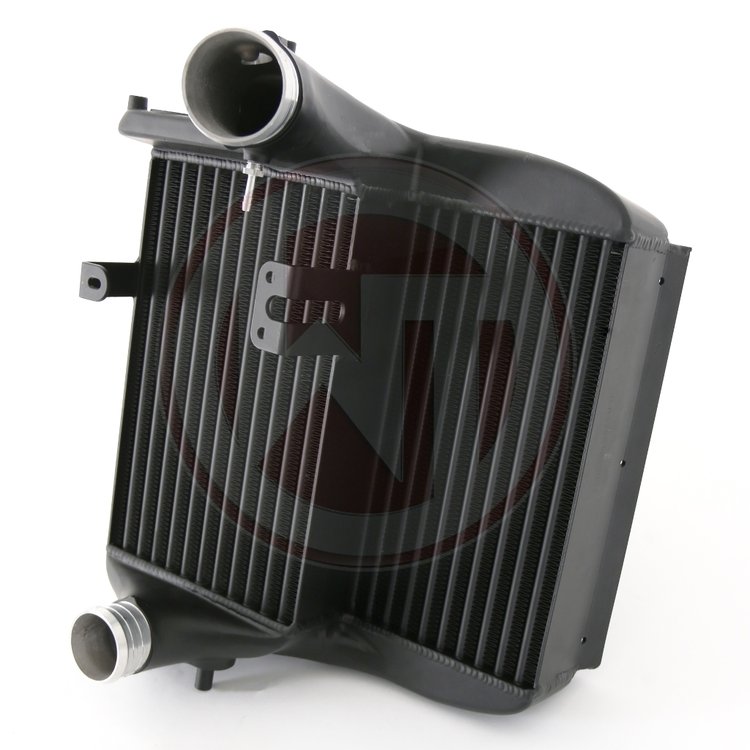

Intercooler Kia Cee'd GT 1,6T-GDI Wagner Competition kit
The high performance intercooler has the following net dimensions (300mm x 350mm x 125[65]mm) and thus offers a 100% larger flow area as well as 117% more charge air volume compared to the original intercooler. The newly developed Competition high-performance mesh is very light, so the complete intercooler weighs only 7.1kg. The end boxes of the intercooler are made of cast aluminum and were optimized under flow analyses in the CAD system. With the help of incorporated air baffles, in the inlet, a uniform filling of the intercooler is ensured. The connection diameters at the inlet and outlet expanded to 60/50mm. Therefore, the kit includes two reinforced silicone hoses. The result is excellent cooling properties with the lowest back pressure. Thus, this kit is just right for racing. The assembly is done at the original mounting points and is easy to perform(1:1 exchange). An optimal cooling of the charged air with a significant increase in performance! All our products are subject to constant qualitative monitoring. OEM intercooler: cooling surface 522cm² / charge air volume 4,7LWAGNERTUNING intercooler: cooling surface 1050cm² / charge air volume 10,2L Scope of delivery:1 intercooler2 silicone hoses4 hose clamps1 assembly instruction

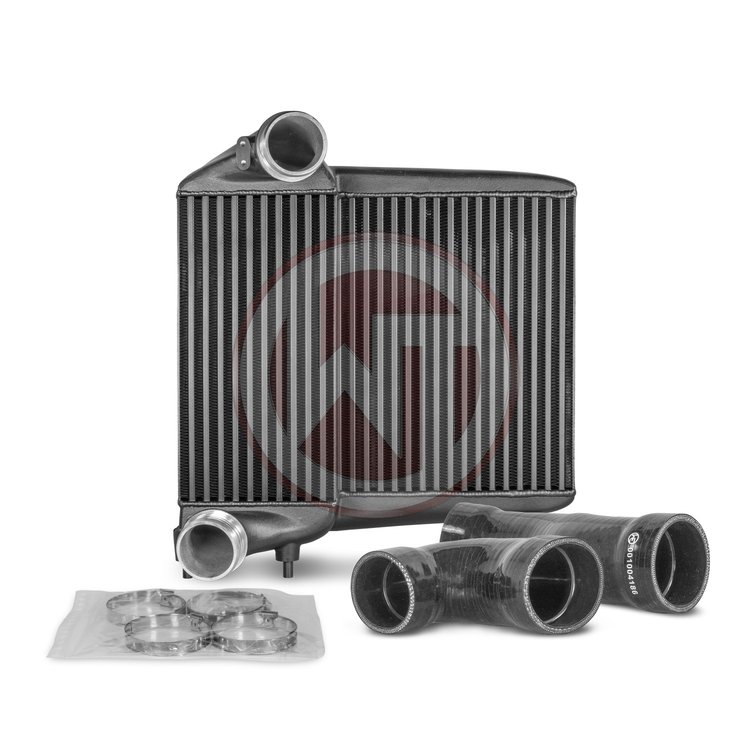

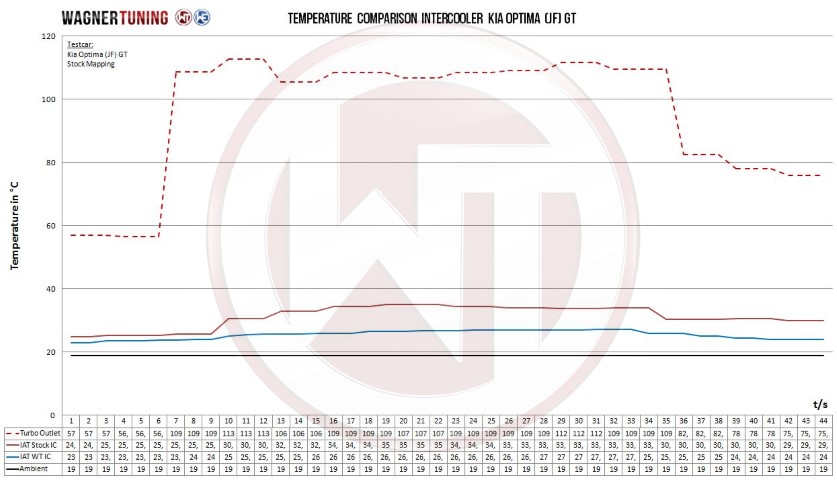

Intercooler Kia Optima JF 2016-2019 GT 2.0 TGDI Wagner Performance Kit
Kia Optima (JF) GT 2,0TGDI 175-180KW/238-245HP 2016-2019 The WAGNERTUNING high performance intercooler has a new Competition - net (Tube Fin) with the dimensions of340 mm x 445 mm x 70 mm + 340 mm x 173 mm x 70 mm (stepped net: 14.71 liters), which was developed specifically for the demands of the Kia Optima GT. This high-performance mesh thus offers a 104% larger flow area, as well as 120% more mesh volume compared to the original intercooler. The cast aluminum end boxes were designed in CAD and optimized using CFD simulations (for ideal internal airflow). The result is excellent cooling properties at lowest backpressure. In addition, the newly developed Competition high-performance mesh still provides sufficient airflow to the adjacent components, such as the water cooler, through the use of a specially manufactured air baffle. Thus, this kit is just right for racing. An optimal cooling of the charged air with a significant increase in performance! An anti-corrosion coating with excellent heat conduction properties protects the WAGNERTUNING intercooler from any environmental influences, as a result of which a lasting and optimal cooling effect can be guaranteed. The assembly takes place at the original mounting points and is easy to perform (plug and play). All our products are subject to constant qualitative monitoring. Inlet and outlet diameter: Ø65mm OEM intercooler:V = 6,68 LA = 742,1 cm² WAGNERTUNING intercooler:V = 14,71 L (+120%)A = 1513 cm² (+104%) Scope of delivery:1 intercooler2 silicone hoses1 mounting material1 installation instruction

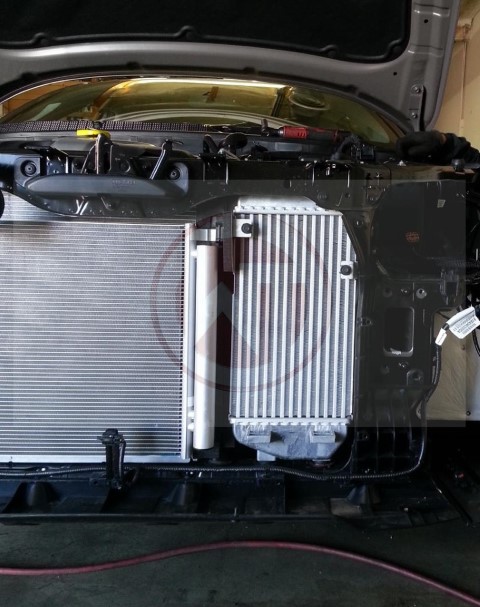

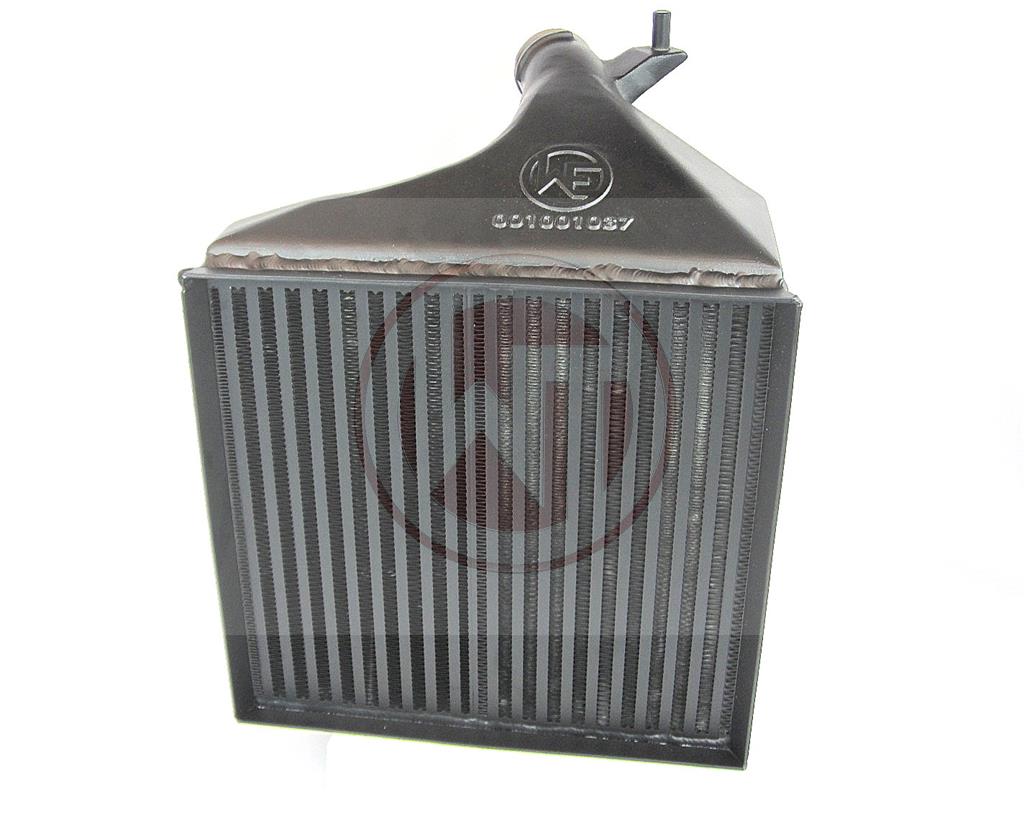

Intercooler Kia Optima TF 2010-2015 2.0TDGi 204kW Wagner Performance Kit
Volume: 11.5LWeight: 9.7kg The performance intercooler has the following net dimensions (340mm x 330mm x 150mm / stepped = 11.5 liters). CAD designed freeform end boxes with cast aluminum internal baffles for best possible internal airflow. Overall, this intercooler has far less back pressure than the stock intercooler. The weight of the performance intercooler is 8.9kg. In addition, all of our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees optimal cooling with a significant increase in performance. The installation is done by replacing the OEM intercooler and is easy to perform (complete ready-to-install kits 100% accurate fit). All our products are subject to constant qualitative monitoring. Scope of delivery:1 intercooler1 installation instruction

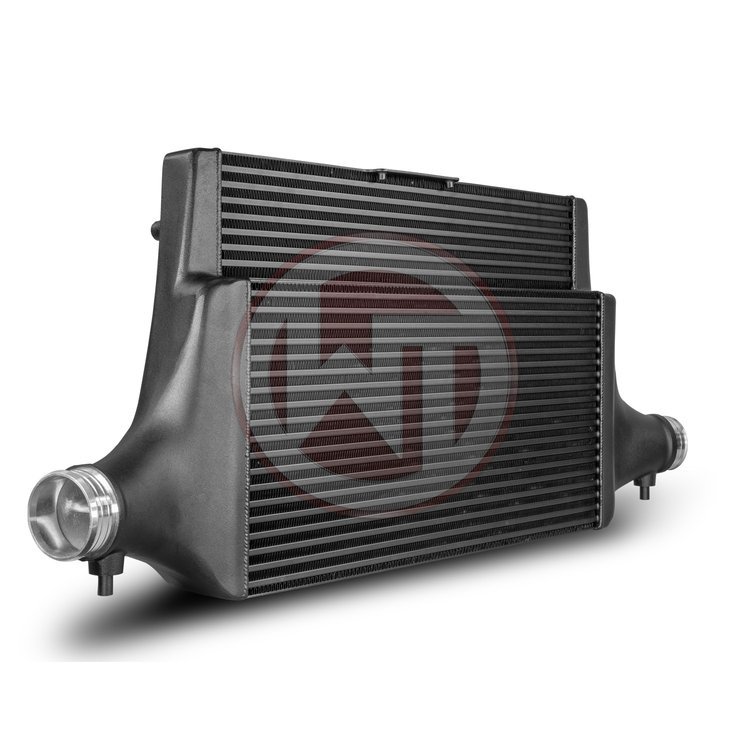

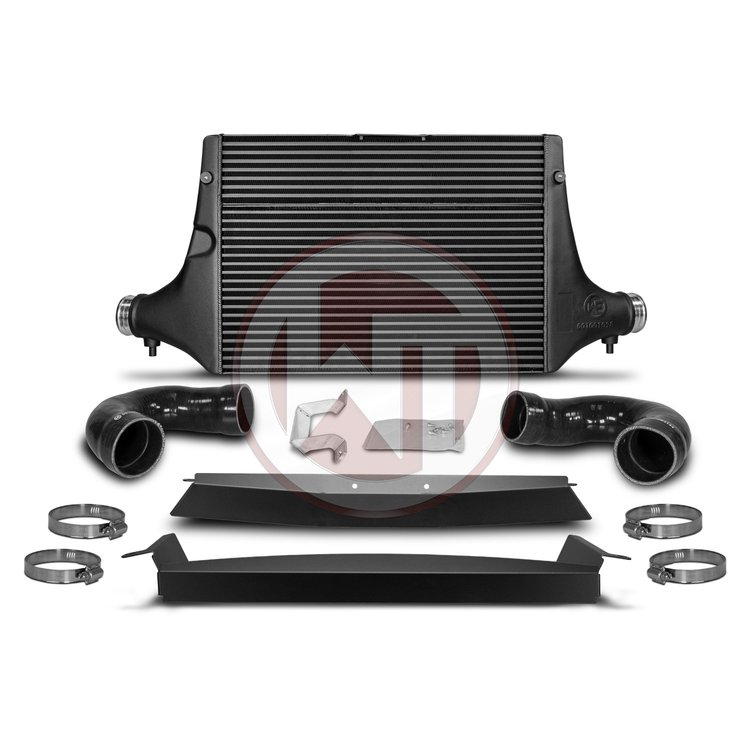

Intercooler Kia Stinger GT Wagner Competition kit
3.3T-Gdi AWD Volume: 24.8L (183% additional cargo volume)Weight: 2x5.2kg Packaging:1 Intercooler 600 x 445(315) x 105(60) mm1 Ram Air Kit2 air guides2 silicone hoses1 Mounting hardware1 Mounting hardware

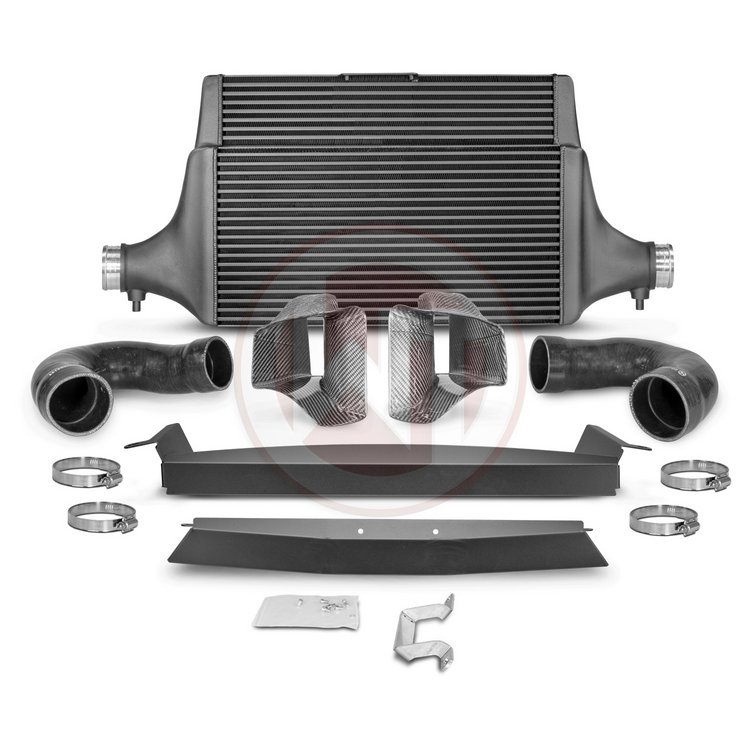

Intercooler Kia Stinger GT Wagner Competition kit + Ram Air Kit
3.3T-Gdi AWD Volume: 24.8L (183% additional cargo volume)Weight: 2x5.2kg Packaging:1 Intercooler 600 x 445(315) x 105(60) mm1 Ram Air Kit2 air guides2 silicone hoses1 Mounting hardware1 Mounting hardware

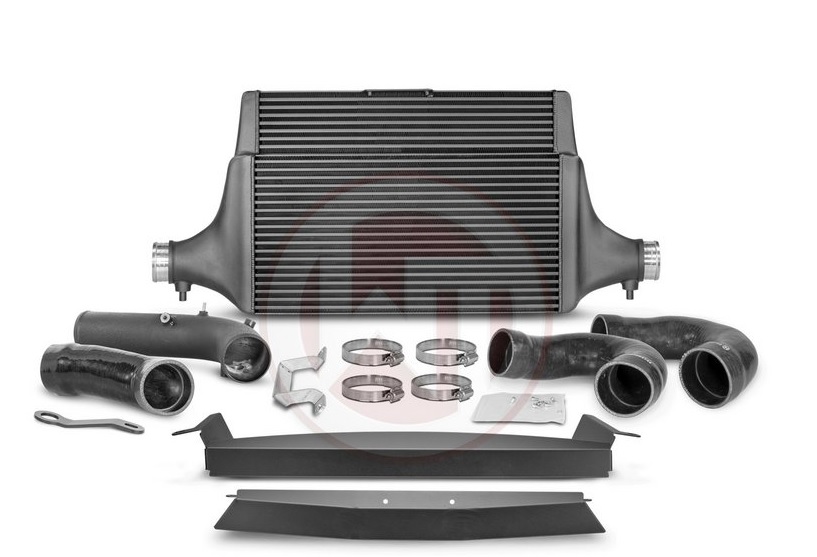

Intercooler Kia Stinger GT Wagner Competition kit + Slangen Kit
3.3T-Gdi AWD Volume: 24.8L (183% additional cargo volume)Weight: 2x5.2kg Packaging:1 Intercooler 600 x 445(315) x 105(60) mm1 Hose kit2 air guides2 silicone hoses1 Fastening material1 Mounting material
