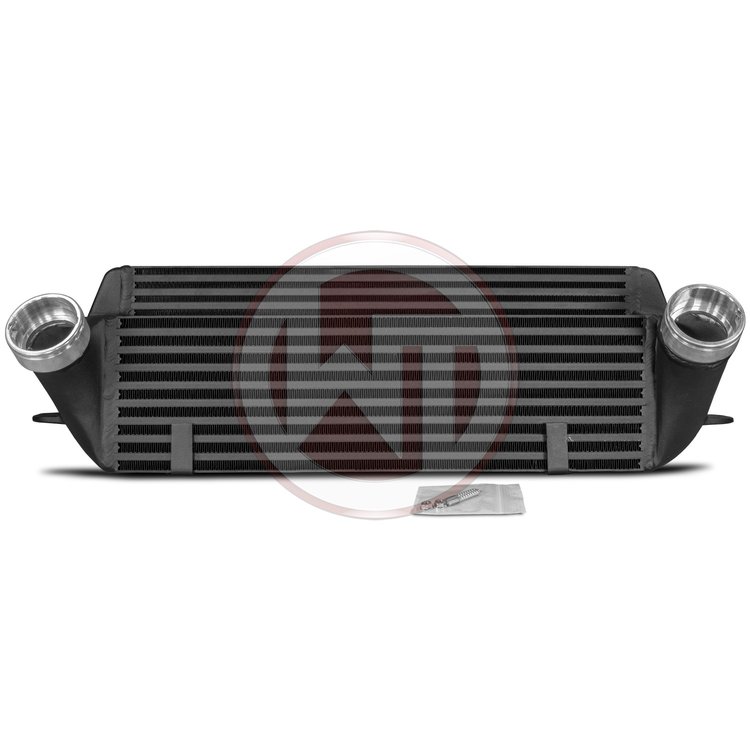

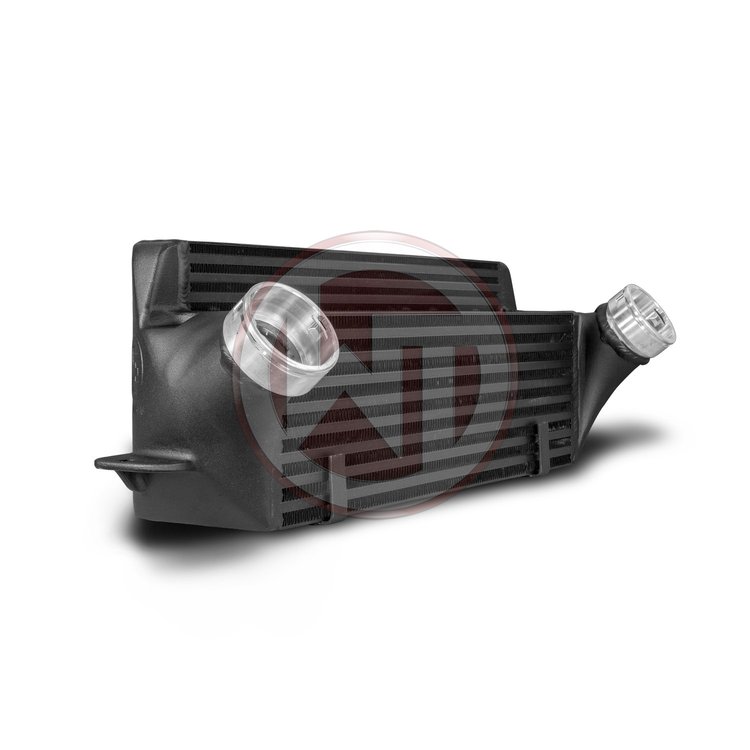

BMW 120d (130KW/177HP) E81/E82/E87/E88 (2007-2013)BMW 123d (150KW/204HP) E81/E82/E87/E88 (2007-2013)BMW 320d (120-135KW/163-184HP) E90/E91/E92/E93 (2008-2012)BMW X1 20d(x) E84 130-135KW/177-184HP (2009-2015)BMW X1 23d(x) E84 150KW/204HP (2009-2012) Packaging:Intercooler 520mm x 200mm x 100mmAssembly Manual

BMW 120d (130KW/177HP) E81/E82/E87/E88 (2007-2013)BMW 123d (150KW/204HP) E81/E82/E87/E88 (2007-2013)BMW 320d (120-135KW/163-184HP) E90/E91/E92/E93 (2008-2012)BMW X1 20d(x) E84 130-135KW/177-184HP (2009-2015)BMW X1 23d(x) E84 150KW/204HP (2009-2012) Packing:Intercooler 520mm x 200mm x 100mmAssembly Manual

135i E82/88 2007-2013 without ACC Packaging:1 Intercooler 510mm x 303mm x 180mm2 Silicone Hoses1 Alu AdapterMounting materialsAssembly Manual

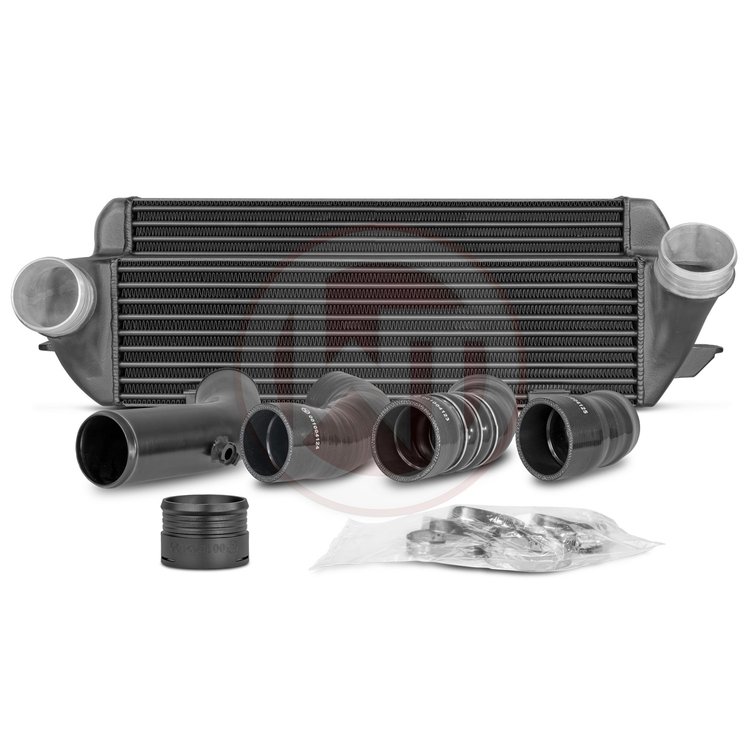

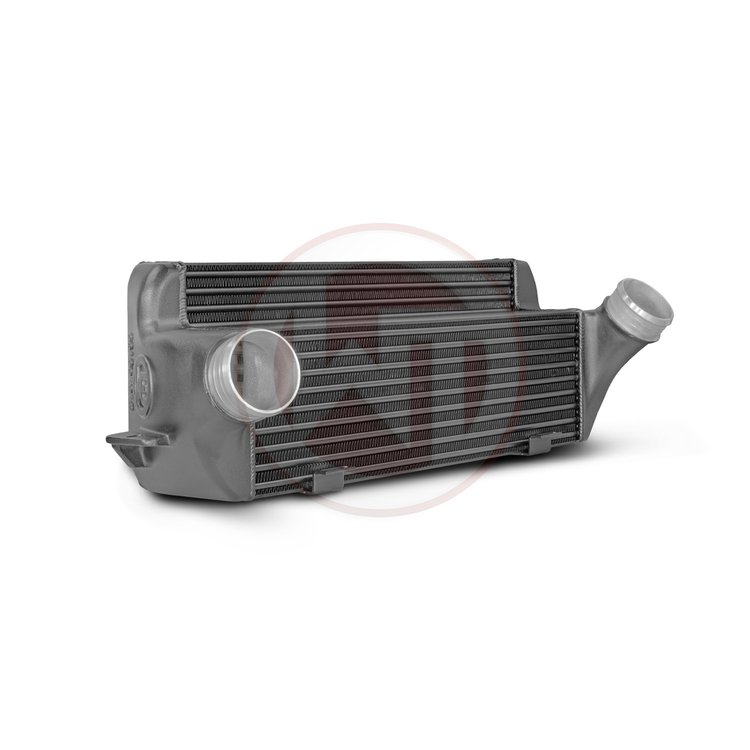

The Competition intercooler EVO 2 has the following net dimensions (520x210x150/staged 13,572cm³) and thus offers an 85% larger inflow area, as well as 90% more intercooler volume compared to the original intercooler. The Competition high performance mesh is a high quality Tube Fin mesh with internal turbulators. Despite its size, the total weight of the intercooler is only 7.4kg. The end boxes of the intercooler are made of cast aluminum and were optimized using flow analysis in the CFD system. The original click connections were eliminated and the connection diameters at the inlet and outlet were expanded to Ø70mm. Therefore, the kit includes 2 reinforced silicone hoses. The intercooler kit EVO 2 was developed directly for the high demands of the BMW N54 & N55 engines. The result is excellent cooling characteristics with the lowest back pressure. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees long-lasting and optimal cooling with a significant increase in performance. Completely ready to install kit, installation is done by replacing the OEM intercooler and is easy to do. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. Suitable for racing. In order for our EVO 2 version to fit all specified vehicles, minor adjustment work must be performed.For vehicles with M package, additional adaptation work on the underbody panel is necessary. The Competition Intercooler Kit EVO 2 fits in the following vehicles with N54 & N55 engines: BMW 335 (x)i E90/E91/E92/93 2006-2011*BMW 335is E92 2009-2013*BMW 135i E82/E88 2008-2013 *BMW 1 series M E82 2011-2013 * * (Rework required on the radiator support) Scope of delivery:1 intercooler (black coated)2 silicone hoses1 aluminum adapter1 mounting material1 assembly instruction

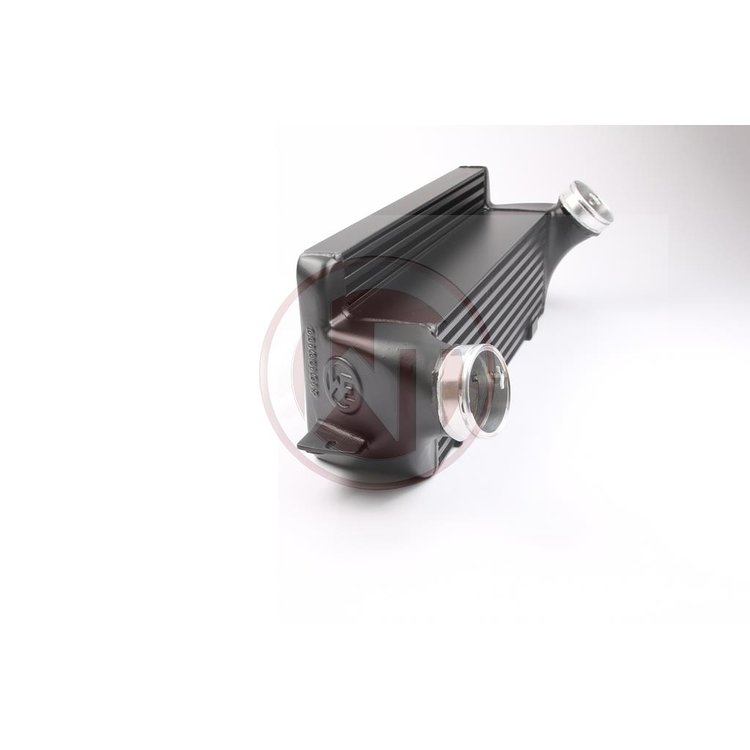

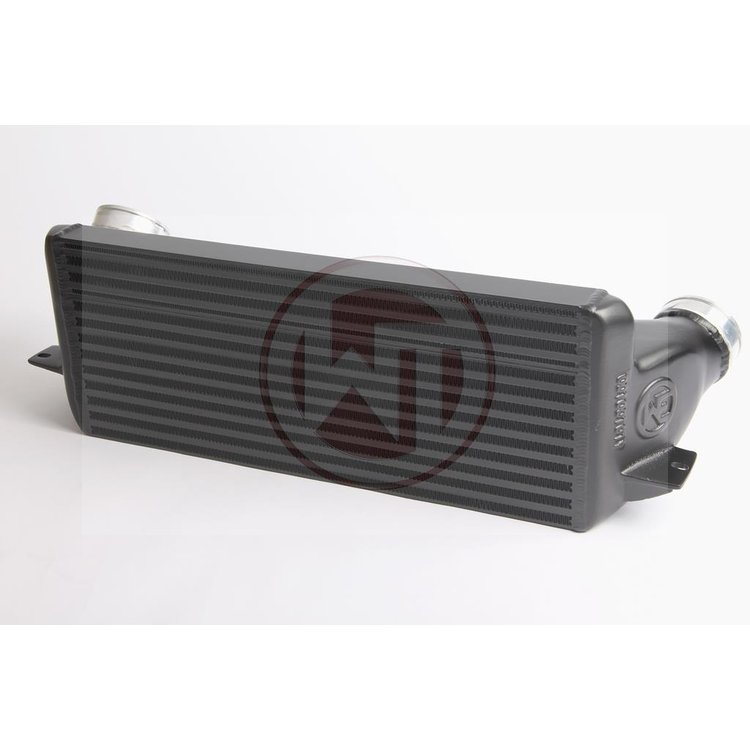

The intercooler EVO 1 has the following net dimensions (520x210x130/staged 11,750cm³) and thus offers an 85% larger flow area, as well as 60% more charge air volume compared to the original intercooler. The Performance high performance mesh is a high quality bar and plate mesh with very good cooling properties. Due to the high material content, the performance version has a weight of 9.0kg. The end boxes of the intercooler are made of cast aluminum and were optimized with the help of flow analyses in the CFD system. The EVO 1 intercooler kit is suitable for the first power stages of the BMW 35i engines. This intercooler causes less back pressure than the stock intercooler. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees long-lasting and optimal cooling with a significant increase in performance. Complete ready-to-install kit, simply replace with stock intercooler - plug and play. The original charge air hoses can still be used. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. The Performance Intercooler Kit EVO 1 fits the following vehicles with N54 & N55 engines. BMW 135i E82/E88 2006-2013BMW 1erM E82 2011-2013BMW 335 (x)i E90/E91/E92/93 2006-2011BMW 335is E92 2009-2013BMW Z4 20i E89 2011-2016BMW Z4 28i E89 2001-2016BMW Z4 35i E89 2009-2016BMW Z4 35is E89 2010-2016 Scope of delivery:1 intercooler1 mounting material1 assembly instruction

Fits the following models with N55 engine BMW F20 / F21 M135i 235-240KW/320-326HP (2011-2016)BMW F22 M235i F22 240KW/326HP (2014-2016)BMW F87 M2 272KW/370HP (2016+)* *Does not fit BMW F87 M2 Competition and xDrive models OEM:510mm x 130mm x 110mmV: 7.3LA: 663 cm² WAGNER:510mm x 345mm x 180mm [stepped].V=23.56 LiterA=1759.5 cm²Tested up to 6 bar and pressure stable Package Contents:1 intercooler1 Ø76 mm air tube1 external air duct2 silicone hoses1 aluminum adapter1 crossbar1 mounting materialAssembly instructions

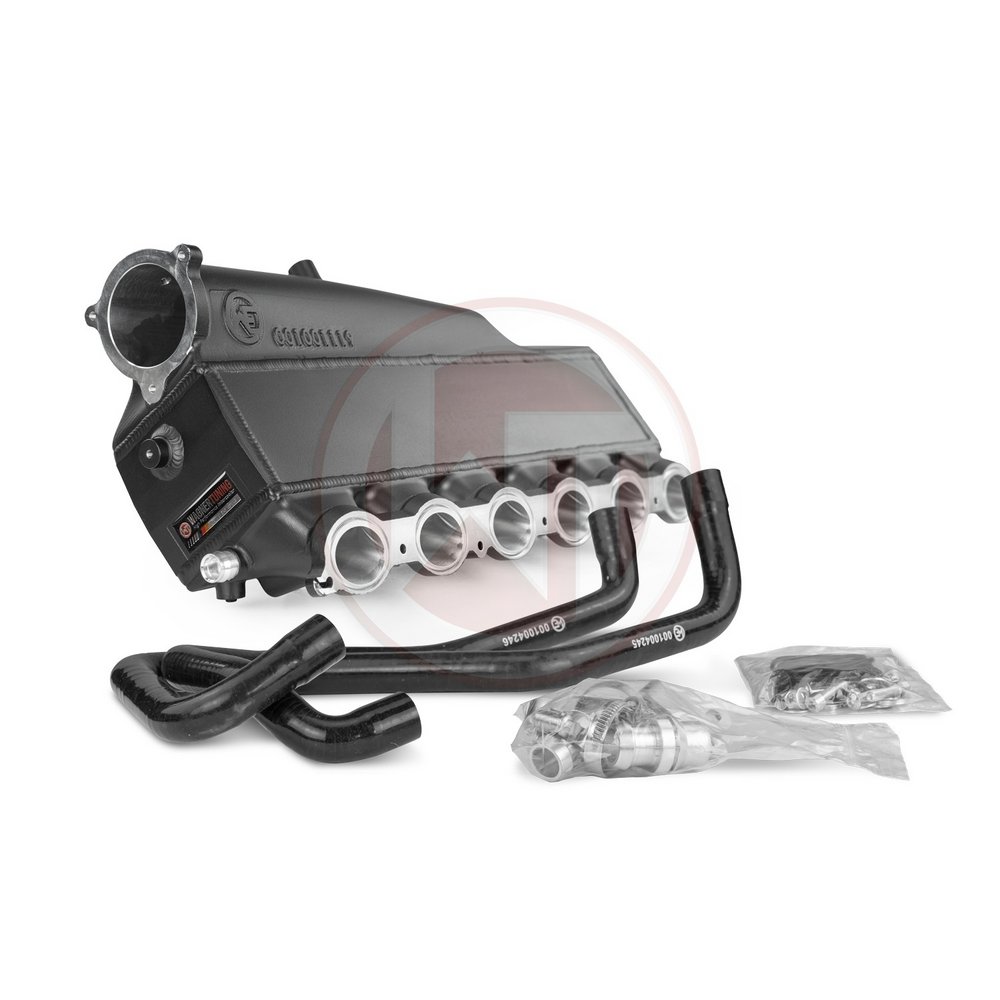

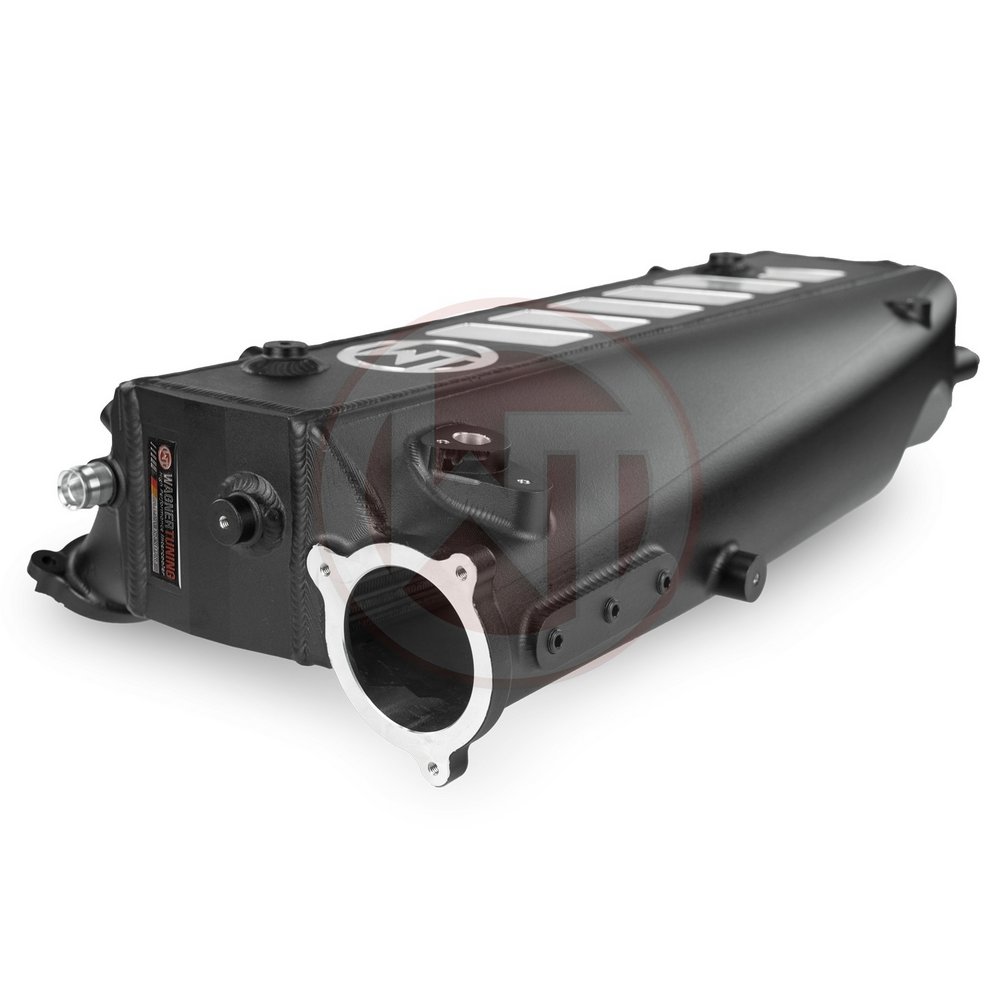

WAGNERTUNING Hybrid-carbon intake manifold with integrated intercooler. Fits plug and play on the following models with S58 engine: BMW 1er F20/21 M140i   The 3.0 Liter B58 turbo engine of BMW M models is equipped with an indirect charge air cooling circuit. The cooling of the charged air is thus achieved by a water-cooled intercooler integrated directly into the intake manifold. The new WAGNERTUNING hybrid-carbon intake manifold with integrated intercooler has a special core, which was specially developed for the high demands of the B58 engine and offers 50% more external core volume compared to the original intercooler.The calculated ratio of inner to outer cooling surface generates maximum heat transfer and at the same time the best possible internal airflow.Using CFD simulations, the CNC-machined endtanks were designed for optimal airflow conditions.The result is excellent cooling with minimal back pressure. Therefore, this kit is also perfect for racing use.Optimal cooling of the charged air with a significant performance increase! All WAGNERTUNING radiators have a heat-conducting anti-corrosion coating for long-lasting cooling.The plug-and-play installation of the system is simple and easy to perform (an installation instruction is also included).   Benefits of this product: - significantly improved cooling performance (up to 20°C cooler AIT)- maximum mechanical removal of the turbocharger- more power and torque for your engine- 100% pressure resistance- 100% Plug and Play (no modifications)- pre-engineered port fuel injection (fuel rail optionally available)- 1/8 NPT ports for measuring additional parameters- this intake manifold is suitable for all performance levels

Competition water cooler kit for BMW B48 & B58 engine Plug and Play suitable for the following models: BMW 1 series F20/F21 LCI from 09/2015 - 120i, 125i, M140(x)iBMW 2 series F22/F23 LCI from 09/2016 - 220i, 230i, M240iBMW 3 series F30/F31/F34/F35 LCI from 09/2014 - 320i, 330i, 340iBMW 4 Series F32/F33/F36 LCI from 05/2016 - 420i, 430i, 440i   The 2.0 liter B48B20 and 3.0 liter B58B30M0 turbo engine of the specified BMW models is equipped with an indirect charge air cooling circuit. As a result, the charge air cooling process is not carried out (as usual) using the ambient air as a cooling medium, but with the aid of a separate cooling water circuit. A reduction in the cooling water temperature can therefore be directly equated with improved charge air cooling performance. This is exactly where the advantages of the WAGNERTUNING Upgrade water cooler come into play. The newly developed competition racing mesh of the WAGNERTUNING high performance water cooler increases the cooling volume of the standard water cooler by 117%. The ratio between inner and outer cooling surface generates a maximum heat transfer and at the same time allows the adjacent components (e.g. the engine water cooler behind it) sufficient air flow for its heat exchange. Furthermore, with the help of the increased amount of cooling water, the entire system thermics can be kept at a lower level over a longer period of time. All WAGNERTUNING water coolers are equipped with a heat-conducting anti-corrosion coating, so that a lasting cooling effect is ensured. The installation of the system is also uncomplicated and plug & play with the help of our installation instructions. Dimensions OEM water cooler:576 mm x 495 mm x 27 mmV = 7.70 litersA = 2851 cm² WT water cooler dimensions:524 mm x 468 mm x 68 mmV = 16.70 litersA = 2454 cm²

114i F20 / F21 75KW/102HP (2012-2015)?116i F20 / F21 100KW/136HP (2011-2015)?116i F20 / F21 80KW/109HP (2015+)?118i F20 / F21 125KW/170HP (2011-2015)?118i F20 / F21 100KW/136HP (2015+)?120i F20 / F21 130KW/177HP (2014-06/2016)?125i F20 / F21 160KW/218HP (2012-06/2016)?M135i(x) F20 / F21 235-240KW/320-326HP (2011-2016)?114d F20 / F21 70KW/95HP (2012+)?116d F20 / F21 85KW/116HP (2011+)?118d(x) F20 / F21 105-110KW/143-150HP (2011+)?120d(x) F20 / F21 135-140KW/184-190HP (2011+)?125d F20 / F21 160-165KW/218-224HP (2012+) The high performance intercooler has the following net dimensions (520x215x145/staged 13,840cm³ / OEM 510x130x110mm, 7,293cm³) and thus offers a 68% larger flow area, as well as 90% more charge air volume compared to the original intercooler. The Competition high performance mesh is a high quality Tube Fin mesh with internal turbulators. Despite its size, the total weight of the intercooler is only 8.6kg. The end boxes of the intercooler are made of cast aluminum and have been optimized using flow analysis in the CFD system. The intercooler kit EVO 2 was developed directly for the high demands of the BMW 135i and 335i. Overall, this intercooler has far less backpressure than the standard intercooler. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees long-lasting and optimal cooling with a significant increase in performance. Complete ready-to-install kit, simply replace with stock intercooler - plug and play. The original charge air hoses can still be used. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. Suitable for racing. The Competition Intercooler Kit EVO 2 is also plug and play suitable for the following vehicles: ? BMW 114i F20 / F21 75KW/102HP (2012-2015)? BMW 116i F20 / F21 100KW/136HP (2011-2015)? BMW 116i F20 / F21 80KW/109HP (2015+)? BMW 118i F20 / F21 125KW/170HP (2011-2015)? BMW 118i F20 / F21 100KW/136HP (2015+)? BMW 120i F20 / F21 130KW/177HP (2014-06/2016)? BMW 125i F20 / F21 160KW/218HP (2012-06/2016)? BMW M135i(x) F20 / F21 235-240KW/320-326HP (2011-2016)? BMW 114d F20 / F21 70KW/95HP (2012+)? BMW 116d F20 / F21 85KW/116HP (2011+)? BMW 118d(x) F20 / F21 105-110KW/143-150HP (2011+)? BMW 120d(x) F20 / F21 135-140KW/184-190HP (2011+)? BMW 125d F20 / F21 160-165KW/218-224HP (2012+) ? BMW 218i F22 100KW/136HP (2015+)? BMW 220i F22 135KW/184HP (2014-06/2016)? BMW 228i(x) F22 180KW/245HP (2014-06/2016)? BMW M235i(x) F22 240KW/326HP (2014-2016)? BMW M2 F87 272KW/370HP (2016+)? BMW 218d F22 103-110KW/143-150HP (2014+)? BMW 220d(x) F22 135-140KW/184-190HP (2014+)? BMW 225d F22 165KW/224HP (2014+) ? BMW 316i F30 / F31 / F34 100KW/136HP (2011-2015)? BMW 318i F30 / F31 / F34 100KW/136HP (2015+)? BMW 320i(x) F30 / F31 / F34 135KW/184HP (2011-2015)? BMW 328i(x) F30 / F31 / F34 180KW/245HP (2011-2015)? BMW 335i(x) F30 / F31 / F34 225KW/306HP (2011-2015)? BMW 316d F30 / F31 / F34 85KW/116HP (2012+)? BMW 318d(x) F30 / F31 / F34 105KW/143HP (2012+)? BMW 320d(x) F30 / F31 / F34 135-140KW/184-190HP (2011+)? BMW 325d F30 / F31 / F34 160KW/218HP (2013+)? BMW 328(x)d F30 / F31 / F34 135KW/184HP (2013+)? BMW 330d(x) F30 / F31 / F34 190KW/258HP (2012+)? BMW 335d(x) F30 / F31 / F34 230KW/313HP (2013+) ? BMW 418i F32 / F36 100KW/134HP (2016-)? BMW 420i(x) F32 / F36 135KW/184HP (2013-2015)? BMW 428i(x) F32 / F36 180KW/245HP (2013-2016)? BMW 435i(x) F32 / F36 225KW/306HP (2013-2016)? BMW 418d F32 / F36 105-110KW/1143-150HP (2014+)? BMW 420d(x) F32 / F36 135-140KW/184-190HP (2013+)? BMW 425d F32 / F36 160-165KW/218-224HP (2014+)? BMW 430d(x) F32 / F36 190KW/258HP (2013+)? BMW 435d(x) F32 / F36 230KW/313HP (2013+) Scope of delivery:1 intercooler1 mounting material1 assembly instruction

114i F20 / F21 75KW/102HP (2012+)?116i F20 / F21 100KW/136HP (2011+)?118i F20 / F21 125KW/170HP (2011+)?125i F20 / F21 160KW/218HP (2012+)? M135i(x) F20 / F21 235KW/320HP (2011+)?114d F20 / F21 70KW/95HP (2012+)?116d F20 / F21 85KW/116HP (2011+)?118d(x) F20 / F21 105KW/143HP (2011+)?120d(x) F20 / F21 135KW/184HP (2011+)?125d F20 / F21 160KW/218HP (2012+) The high performance intercooler has the following net dimensions (520x210x130/stepped 11.750cm³ / OEM 510x130x110mm, 7.293cm³) and thus offers a 64% larger flow area, as well as 60% more charge air volume compared to the original intercooler. The Competition high performance mesh is a high quality Tube Fin mesh with internal turbulators. As a result, the total weight of the intercooler is only 6.6kg. The end boxes of the intercooler are made of cast aluminum and have been optimized using flow analysis in the CFD system. The intercooler kit EVO1 is suitable for the first power stages of BMW engines. This intercooler causes less back pressure than the stock intercooler. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees a durable and optimal cooling with a significant increase in performance. Complete ready-to-install kit, simply replace with stock intercooler - plug and play. The original charge air hoses can still be used. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. From now on with TÜV parts certificate for many vehicles! The Competition Intercooler Kit EVO 1 is plug and play suitable for the following vehicles: ? BMW 114i F20 / F21 75KW/102HP (2012-2015)? BMW 116i F20 / F21 100KW/136HP (2011-2015)? BMW 116i F20 / F21 80KW/109HP (2015+)? BMW 118i F20 / F21 125KW/170HP (2011-2015)? BMW 118i F20 / F21 100KW/136HP (2015+)? BMW 120i F20 / F21 130KW/177HP (2014-06/2016)? BMW 125i F20 / F21 160KW/218HP (2012-06/2016)? BMW M135i(x) F20 / F21 235-240KW/320-326HP (2011-2016)? BMW 114d F20 / F21 70KW/95HP (2012+)? BMW 116d F20 / F21 85KW/116HP (2011+)? BMW 118d(x) F20 / F21 105-110KW/143-150HP (2011+)? BMW 120d(x) F20 / F21 135-140KW/184-190HP (2011+)? BMW 125d F20 / F21 160-165KW/218-224HP (2012+) ? BMW 218i F22 / F23 100KW/136HP (2015+)? BMW 220i F22 / F23 135KW/184HP (2014-06/2016)? BMW 228i(x) F22 / F23 180KW/245HP (2014-06/2016)? BMW M235i(x) F22/F23 240KW/326HP (2014-2016)? BMW M2 F87 272KW/370HP (2016+)? BMW 218d F22 / F23 103-110KW/143-150HP (2014+)? BMW 220d(x) F22 / F23 135-140KW/184-190HP (2014+)? BMW 225d F22 / F23 165KW/224HP (2014+) ? BMW 316i F30 / F31 / F34 100KW/136HP (2011-2015)? BMW 318i F30 / F31 / F34 100KW/136HP (2015+)? BMW 320i(x) F30 / F31 / F34 135KW/184HP (2011-2015)? BMW 328i(x) F30 / F31 / F34 180KW/245HP (2011-2015)? BMW 335i(x) F30 / F31 / F34 225KW/306HP (2011-2015)? BMW 316d F30 / F31 / F34 85KW/116HP (2012+)? BMW 318d(x) F30 / F31 / F34 105KW/143HP (2012+)? BMW 320d(x) F30 / F31 / F34 135-140KW/184-190HP (2011+)? BMW 325d F30 / F31 / F34 160KW/218HP (2013+)? BMW 328(x)d F30 / F31 / F34 135KW/184HP (2013+)? BMW 330d(x) F30 / F31 / F34 190KW/258HP (2012+)? BMW 335d(x) F30 / F31 / F34 230KW/313HP (2013+) ? BMW 418i F32 / F33 / F36 100KW/134HP (2016-)? BMW 420i(x) F32 / F33 / F36 135KW/184HP (2013-2015)? BMW 428i(x) F32 / F33 / F36 180KW/245HP (2013-2016)? BMW 435i(x) F32 / F33 / F36 225KW/306HP (2013-2016)? BMW 418d F32 / F33 / F36 105-110KW/1143-150HP (2014+)? BMW 420d(x) F32 / F33 / F36 135-140KW/184-190HP (2013+)? BMW 425d F32 / F33 / F36 160-165KW/218-224HP (2014+)? BMW 430d(x) F32 / F33 / F36 190KW/258HP (2013+)? BMW 435d(x) F32 / F33 / F36 230KW/313HP (2013+) Scope of delivery:1 intercooler1 mounting material1 assembly instruction

M 135 E82 2011-2013 CAUTION !!! Necessary modifications The Competition intercooler EVO 2 has the following mesh dimensions (520x210x150/staged 13,572cc), providing 85% more flow area, and 90% more intercooler volume compared to the original intercooler. The Competition high performance mesh is a high quality Tube Fin mesh with internal turbulators. Despite its size, the total weight of the intercooler is only 7.4kg. The end boxes of the intercooler are made of cast aluminum and were optimized using flow analysis in the CFD system. The original click connections were eliminated and the connection diameters at the inlet and outlet were expanded to Ø70mm. Therefore, the kit includes 2 reinforced silicone hoses. The intercooler kit EVO 2 was developed directly for the high demands of the BMW N54 & N55 engines. The result is excellent cooling properties with the lowest back pressure. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees long-lasting and optimal cooling with a significant increase in performance. Completely ready to install kit, installation is done by replacing the OEM intercooler and is easy to do. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. Suitable for racing. In order for our EVO 2 version to fit all specified vehicles, minor adjustment work must be performed.For vehicles with M package, additional adaptation work on the underbody panel is necessary. The Competition Intercooler Kit EVO 2 fits in the following vehicles with N54 & N55 engines: BMW 335 (x)i E90/E91/E92/93 2006-2011*BMW 335is E92 2009-2013*BMW 135i E82/E88 2008-2013 *BMW 1 series M E82 2011-2013 * * (Rework required on the radiator support) Scope of delivery:1 intercooler (black coated)2 silicone hoses1 aluminum adapter1 mounting material1 assembly instruction

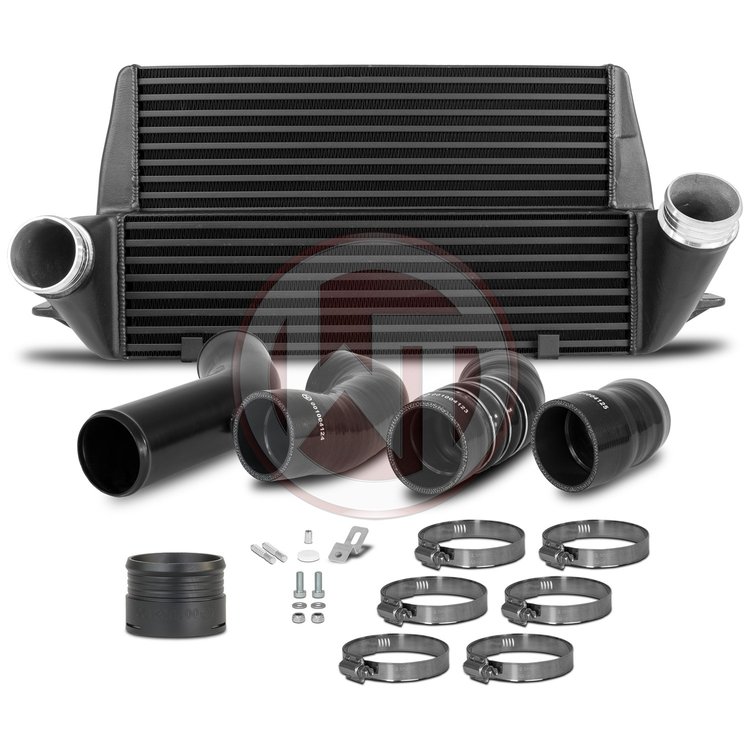

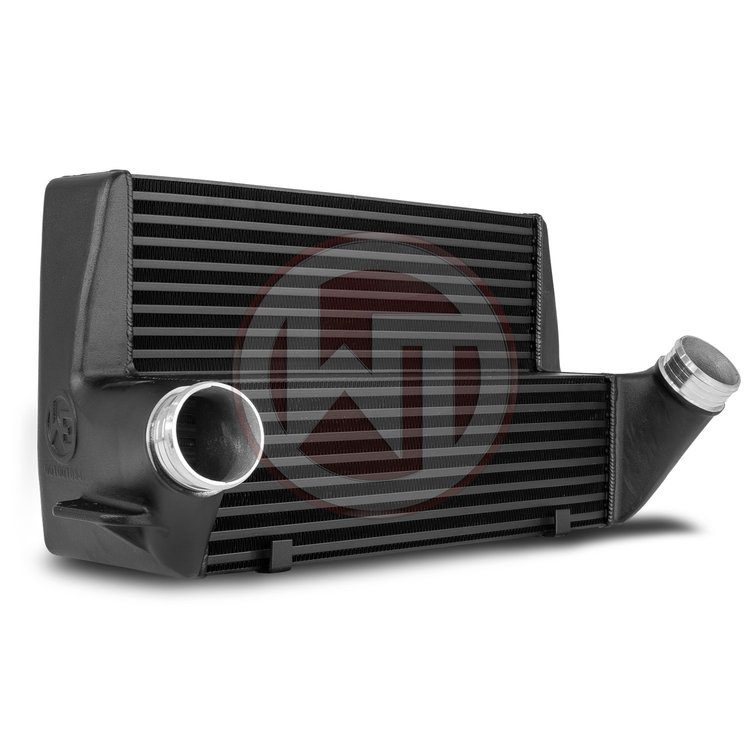

M135i E82 2011-103 without ACC The high performance intercooler has the net dimensions 510mm x 303mm x 180mm (stepped 20,65L) and thus offers a 162% larger flow area, as well as 182% more intercooler volume compared to the original intercooler. The Competition high performance mesh is a high quality Tube Fin mesh with internal turbulators. Despite its size, the total weight of the intercooler is only 13.2kg. The end boxes of the intercooler are made of cast aluminum and have been optimized using flow analysis in the CFD system. The intercooler kit EVO3 was developed directly for the high demands of the large tuning stages on the BMW 135i and 335i. The original click connections were eliminated and the connection diameters at the inlet and outlet were expanded to Ø70mm. Therefore, the kit includes two reinforced silicone hoses. The result is excellent cooling properties with the lowest back pressure. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees long-lasting and optimum cooling with a significant increase in performance. Complete ready-to-install kit, simply replace with stock intercooler - due to the extreme size, minor adjustments to the radiator support are necessary. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. Suitable for racing.   The intercooler kit EVO III Competition fits the following vehicles with N54 & N55 engines: BMW 335 (x)i E90/E91/E92/93 2006-2011 (without ACC)BMW 335is E92 2009-2013 (without ACC)BMW 135i E82/E88 2007-2013 (without ACC)BMW 1erM E82 2011-2013 (without ACC) Scope of delivery:1 intercooler2 silicone hoses1 aluminum adapter1 mounting material1 assembly instruction

3M 135 E82 2011-2013 The intercooler EVO 1 has the following net dimensions (520x210x130/staged 11.750cm³) and thus offers an 85% larger flow area, as well as 60% more charge air volume compared to the original intercooler. The Performance high performance mesh is a high quality bar and plate mesh with very good cooling properties. Due to the high material content, the performance version has a weight of 9.0kg. The end boxes of the intercooler are made of cast aluminum and were optimized with the help of flow analyses in the CFD system. The EVO 1 intercooler kit is suitable for the first power stages of the BMW 35i engines. This intercooler causes less back pressure than the stock intercooler. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees long-lasting and optimal cooling with a significant increase in performance. Complete ready-to-install kit, simply replace with stock intercooler - plug and play. The original charge air hoses can still be used. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. The Performance Intercooler Kit EVO 1 fits the following vehicles with N54 & N55 engines. BMW 135i E82/E88 2006-2013BMW 1erM E82 2011-2013BMW 335 (x)i E90/E91/E92/93 2006-2011BMW 335is E92 2009-2013BMW Z4 20i E89 2011-2016BMW Z4 28i E89 2001-2016BMW Z4 35i E89 2009-2016BMW Z4 35is E89 2010-2016 Scope of delivery:1 intercooler1 mounting material1 assembly instruction

?220i F22 / F23 135KW/184HP (2014+)?228i(x) F22 / F23 180KW/245HP (2014+)M235i(x) F22/F23 240KW/326HP (2014+)M2 F87 272KW/370HP (2014+)?218d F22 / F23 103KW/143HP (2014+)?220d(x) F22 / F23 135KW/184HP (2014+)?225d F22 / F23 160KW/218HP (2014+) The high performance intercooler has the following net dimensions (520x210x130/stepped 11,750cm³ / OEM 510x130x110mm, 7,293cm³) and thus offers a 64% larger flow area, as well as 60% more charge air volume compared to the original intercooler. The Competition high performance mesh is a high quality Tube Fin mesh with internal turbulators. As a result, the total weight of the intercooler is only 6.6kg. The end boxes of the intercooler are made of cast aluminum and have been optimized using flow analysis in the CFD system. The intercooler kit EVO1 is suitable for the first power stages of BMW engines. This intercooler causes less back pressure than the stock intercooler. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees a durable and optimal cooling with a significant increase in performance. Complete ready-to-install kit, simply replace with stock intercooler - plug and play. The original charge air hoses can still be used. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. From now on with TÜV parts certificate for many vehicles! The Competition Intercooler Kit EVO 1 is plug and play suitable for the following vehicles: ? BMW 114i F20 / F21 75KW/102HP (2012-2015)? BMW 116i F20 / F21 100KW/136HP (2011-2015)? BMW 116i F20 / F21 80KW/109HP (2015+)? BMW 118i F20 / F21 125KW/170HP (2011-2015)? BMW 118i F20 / F21 100KW/136HP (2015+)? BMW 120i F20 / F21 130KW/177HP (2014-06/2016)? BMW 125i F20 / F21 160KW/218HP (2012-06/2016)? BMW M135i(x) F20 / F21 235-240KW/320-326HP (2011-2016)? BMW 114d F20 / F21 70KW/95HP (2012+)? BMW 116d F20 / F21 85KW/116HP (2011+)? BMW 118d(x) F20 / F21 105-110KW/143-150HP (2011+)? BMW 120d(x) F20 / F21 135-140KW/184-190HP (2011+)? BMW 125d F20 / F21 160-165KW/218-224HP (2012+) ? BMW 218i F22 / F23 100KW/136HP (2015+)? BMW 220i F22 / F23 135KW/184HP (2014-06/2016)? BMW 228i(x) F22 / F23 180KW/245HP (2014-06/2016)? BMW M235i(x) F22/F23 240KW/326HP (2014-2016)? BMW M2 F87 272KW/370HP (2016+)? BMW 218d F22 / F23 103-110KW/143-150HP (2014+)? BMW 220d(x) F22 / F23 135-140KW/184-190HP (2014+)? BMW 225d F22 / F23 165KW/224HP (2014+) ? BMW 316i F30 / F31 / F34 100KW/136HP (2011-2015)? BMW 318i F30 / F31 / F34 100KW/136HP (2015+)? BMW 320i(x) F30 / F31 / F34 135KW/184HP (2011-2015)? BMW 328i(x) F30 / F31 / F34 180KW/245HP (2011-2015)? BMW 335i(x) F30 / F31 / F34 225KW/306HP (2011-2015)? BMW 316d F30 / F31 / F34 85KW/116HP (2012+)? BMW 318d(x) F30 / F31 / F34 105KW/143HP (2012+)? BMW 320d(x) F30 / F31 / F34 135-140KW/184-190HP (2011+)? BMW 325d F30 / F31 / F34 160KW/218HP (2013+)? BMW 328(x)d F30 / F31 / F34 135KW/184HP (2013+)? BMW 330d(x) F30 / F31 / F34 190KW/258HP (2012+)? BMW 335d(x) F30 / F31 / F34 230KW/313HP (2013+) ? BMW 418i F32 / F33 / F36 100KW/134HP (2016-)? BMW 420i(x) F32 / F33 / F36 135KW/184HP (2013-2015)? BMW 428i(x) F32 / F33 / F36 180KW/245HP (2013-2016)? BMW 435i(x) F32 / F33 / F36 225KW/306HP (2013-2016)? BMW 418d F32 / F33 / F36 105-110KW/1143-150HP (2014+)? BMW 420d(x) F32 / F33 / F36 135-140KW/184-190HP (2013+)? BMW 425d F32 / F33 / F36 160-165KW/218-224HP (2014+)? BMW 430d(x) F32 / F33 / F36 190KW/258HP (2013+)? BMW 435d(x) F32 / F33 / F36 230KW/313HP (2013+) Scope of delivery:1 intercooler1 mounting material1 assembly instruction

WAGNERTUNING Hybrid-carbon intake manifold with integrated intercooler. Fits plug and play on the following models with B58 engine: BMW 2er F22/23 M240i The 3.0 Liter B58 turbo engine of the BMW M models is equipped with an indirect charge air cooling circuit. The cooling of the charged air is thus achieved by a water-cooled intercooler integrated directly into the intake manifold. The new WAGNERTUNING hybrid-carbon intake manifold with integrated intercooler has a special core, which was specially developed for the high demands of the B58 engine and offers 50% more external core volume compared to the original intercooler.The calculated ratio of inner to outer cooling surface generates maximum heat transfer and at the same time the best possible internal airflow.Using CFD simulations, the CNC-machined endtanks were designed for optimal airflow conditions.The result is excellent cooling with minimal back pressure. Therefore, this kit is also perfect for racing use.Optimal cooling of the charged air with a significant performance increase! All WAGNERTUNING radiators have a heat-conducting anti-corrosion coating for long-lasting cooling.The plug-and-play installation of the system is simple and easy to perform (an installation instruction is also included). Benefits of this product: - significantly improved cooling performance (up to 20°C cooler AIT)- maximum mechanical removal of the turbocharger- more power and torque for your engine- 100% pressure resistance- 100% Plug and Play (no modifications)- pre-engineered port fuel injection (fuel rail optionally available)- 1/8 NPT ports for measuring additional parameters- this intake manifold is suitable for all performance levels

Plug and Play suitable for the following models: BMW 1 series F20/F21 LCI from 09/2015 - 120i, 125i, M140(x)iBMW 2 series F22/F23 LCI from 09/2016 - 220i, 230i, M240iBMW 3 series F30/F31/F34/F35 LCI from 09/2014 - 320i, 330i, 340iBMW 4 Series F32/F33/F36 LCI from 05/2016 - 420i, 430i, 440i The 2.0 liter B48B20 and 3.0 liter B58B30M0 turbo engine of the specified BMW models is equipped with an indirect charge air cooling circuit. As a result, the charge air cooling process is not carried out (as usual) using the ambient air as a cooling medium, but with the aid of a separate cooling water circuit. A reduction in the cooling water temperature can therefore be directly equated with improved charge air cooling performance. This is exactly where the advantages of the WAGNERTUNING Upgrade water cooler come into play. The newly developed competition racing mesh of the WAGNERTUNING high performance water cooler increases the cooling volume of the standard water cooler by 117%. The ratio between inner and outer cooling surface generates a maximum heat transfer and at the same time allows the adjacent components (e.g. the engine water cooler behind it) sufficient air flow for its heat exchange. Furthermore, with the help of the increased amount of cooling water, the entire system thermics can be kept at a lower level over a longer period of time. All WAGNERTUNING water coolers are equipped with a heat-conducting anti-corrosion coating, so that a lasting cooling effect is ensured. The installation of the system is also uncomplicated and plug & play with the help of our installation instructions. Dimensions OEM water cooler:576 mm x 495 mm x 27 mmV = 7.70 litersA = 2851 cm² WT water cooler dimensions:524 mm x 468 mm x 68 mmV = 16.70 litersA = 2454 cm²
